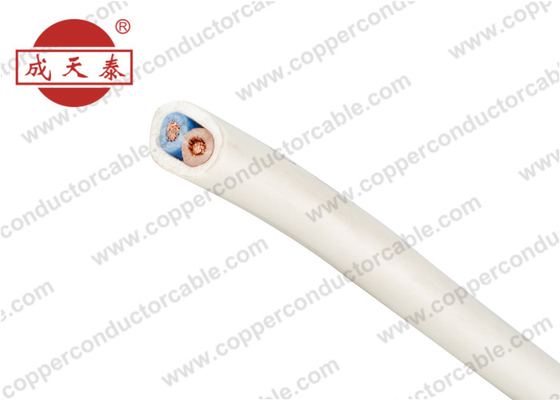

PVC Insulation Electrical Copper Conductor Cable 2 Cores Round Shape

Negotiable
MOQ
Negotiable
Price
PVC Insulation Electrical Copper Conductor Cable 2 Cores Round Shape
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Copper Building Wire
No. Of Conductor: Two Cores
Size: 1.5 Mm
Cable Shape: Round
Insulation: PVC Compound With Mica Layer
Type: Coppe Electrical Cable
Highlight:

Copper Conductor Cable factory

,

Copper Conductor Cable 2 Cores

,

Copper Building Wire PVC Insulation

Basic Infomation
Place of Origin: Shenzhen,China (Mainland)
Brand Name: CTT cable
Certification: IEC, CE, RoHS,ISO
Model Number: RVVB 2 1.5
Payment & Shipping Terms
Packaging Details: Coil in foil (100 m)
Delivery Time: 7/ 15 working days
Payment Terms: L/C, T/T
Product Description

300 / 500V H05VV-F Flat Multi Core Flexible Copper Conductor Electrical Cable



Product introduction:

Place of Origin: China Mainland

Brand Name: Shenzhen Chentiantai Cable

Certification: CE, CB, CCC

Model Number : RVVB

Minimum Order : 100 Unit

Price : On Request

No. Of Conductor: Two Cores

Outer Shape: Flat

Conductor: Flexible Conductor

Insulation: PVC Compound

Sheath: PVC Compound


Application:

Exposed wiring in air or in raceway, wet or dry location and used for mobile electrical equipment


Product Specification:

Nominal cross sectional

Area

(mm²)

Upper limit of average outer diameter

(mm)

Maximum DC resistance at 20 ℃

(Ω/km)

Approximate carrying capacity

(A)

Reference weight

(Kg/km)

2x0.75 4.2*8.4 26.0 13.0 45.0
2x1.0 4.3*8.6 19.5 20.0 65.0
2x1.5 4.8*9.6 13.3 25.4 65.0
2x2.5 5.4*10.8 7.98 34.5 88.0
2x4 6.2*12.4 4.95 44.5 137.0
2x6 7.0*14.0 3.30 53.0 188.0

* The ampacity of cable will be directly affected by the lay-out methods and the ambient temperature.



Features:

Permissible operating temperature at conductor +70℃
Short circuit temperature (duration max. 5 s) 160℃
Minimum installation temperature Should not be lower than 0 ℃
Max. Conductor permissible tensile stress 50 N/mm ²
Minimum bending radius 15 × cable Ø


Advantage:

It has the advantages of acid and alkali resistance, oil resistance, moisture-proof, mildew resistance, etc





Other Information:

Packaging Details: Coil in foil

Delivery Time: 15 working days

Payment Terms : L/C, T/T

CUSTOMER SERVICES Did you know?

We manufactures a comprehensive array of wires and cables to meet diverse market needs.



We look forward to assisting you in identifying the best products for your specific

application and to answer any questions you might have.



Head office: Chentiantai Industrial Park, Lisonglang community , Gongming office, Guangming district , Shenzhen P.R. China 518106





. Shenzhen Chengtiantai Cable operates certified management systems compliant with: ISO 9001:2008/ ISO14001:2004/OHSAS 18001 : 2007

. Cable production started 1983

. 35 years of cable manufacturing experience

·Sales in 2016 about 500 million USD

.100,000m² production area

.350 will-trained employees

.8 workshops

.1 R&D Center







Because we continuously improve our products, CTT Cable reserves the right to change specifications and availability without prior notice.
