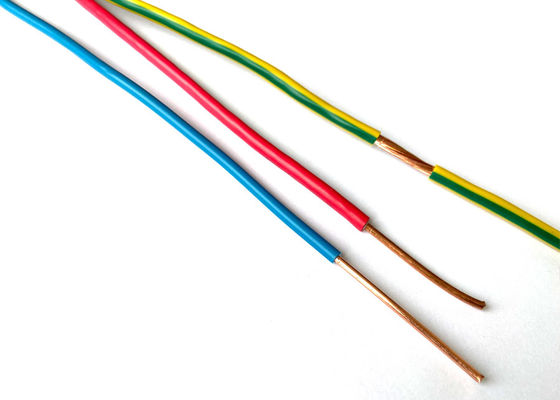

PVC Insulted Single-core solid conductor house wiring Cable
H05V-U/H07V-U Electrical wire are determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes,under and surface mounting of plasters.
These electrical wire cables H05V-U H07V-U are suitable for laying tubes, under and surface mounting of plasters and also in closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or tanks.
These types H05V-U H07V-U Electrical wire are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against ground.
STANDARDS | |
International: | H05V-U: 60227 IEC 05 H07V-U: 60227 IEC 01 |
National: | GB/T5023.1-2008 |
Construction characteristics | |
Conductor material | Solid copper conductor to IEC 60228 class 1 |
Insulation | polyvinyl chloride (PVC) |
Electrical characteristics | |
Rated voltage Uo/U (Um) | H05V-U: 300/500V H07V-U: 450/750 V |
Test voltage: | H05V-U: 2000 V H07V-U:2500 V |
Usage characteristics | |
Temperature range: | -5 to +70°C |
Maximum operating temperature: | 70°C |
Short-circuit max conductor temperature: | 160°C |
Color options : | |
Black, Red, Orange, Blue, Yellow, Yellow-green | * Other colors can be supplied on request |
Mechanical resistance to impacts : | Low |
Installation conditions | |
Installation temperature: | 5°C |
Minimum bending radius: | 4 x cable diameter |
Recommended maximum tensile stress: | 50 N/mm² |
H05V-U 300/500 V PVC Insulated non-sheathed with solid copper conductor for house wiring
Conductor cross section |
minimum wall-thickness |
Outer Ø min. - max. |
Weight approx. | Maximum current rating Air 25 ℃ |
Conductor DC resistant at 20°C | Standard length |
---|---|---|---|---|---|---|
mm² | mm | mm | kg / km | A | Ω/km | m /coil |
0.5 | 0.6 | 1,9 - 2,3 | 9 | 12 | 36 | 100 |
0.75 | 0.6 | 2.1 - 2.5 | 12 | 15 | 24.5 | 100 |
1 | 0.6 | 2.2 - 2.7 | 15 | 19 | 18.1 | 100 |
H07V-U 450/750V PVC Insulated non-sheathed with solid copper conductor for house wiring
Conductor cross section |
minimum wall-thickness |
Outer Ø min. - max. |
Weight approx. | Maximum current rating Air 25 ℃ |
Conductor DC resistant at 20°C | Standard length |
---|---|---|---|---|---|---|
mm² | mm | mm | kg / km | A | Ω/km | m /coil |
1.5 | 0.7 | 2.6 - 3.2 | 19.9 | 25 | 12.1 | 100 |
2.5 | 0.8 | 3.2 - 3.9 | 31.4 | 34 | 7.41 | 100 |
4 | 0.8 | 3.6 - 4.4 | 49 | 44.5 | 4.61 | 100 |
6 | 0.8 | 4.3 - 5.0 | 66 | 58 | 3.08 | 100 |
10 | 1 | 5.3 - 6.4 | 11.4 | 79.5 | 1.83 | 100 |
* Dimensions and specifications may be changed without prior notice.
Designation |
Nominal Voltage U0 / U (V) |
According to DIN VDE 0285-525 |
According to design to IEC | Links |
---|---|---|---|---|
PVC-wring cables single wire | 300/500 | H05V-U | 60227 IEC 05 | More >> |
PVC-wring cables fine wires | 300/500 | H05V-K | 60227 IEC 06 | More >> |
PVC-insulated cables single wire | 450/750 | H07V-U | 60227 IEC 01 | More >> |
PVC-insulated cables Multi-stranded wires | 450/750 | H07V-R | 60227 IEC 01 | More >> |
PVC-insulated cables fine wires | 450/750 | H07V-K | 60227 IEC 02 | More >> |
Multi-core PVC-Sheathed cables round | 300/300 | H03VV-F | 60227 IEC 52 | More>> |
Multi-core PVC-Sheathed flexible cables round | 300/500 | H05VV-F | 60227 IEC 53 | More >> |
Light PVC sheathed cables for fixed wiring | 300/500 | — | 60227 IEC 10 | More >> |
PVC Insulated Flexible Twin Twisted Electrical Wire | 300/300 | — | 60227 IEC 43 | More >> |
Delivery Port:
Port of Shenzhen | Port of Hongkong | Port of Guangzhou |
Products Certificates
CE | IEC CB TEST CERTIFICATE | China Compulsory Certificate, 3C |
– Certificate No. : CE170103005260 – Certified through China quality certification centre |
– Certificate No. : CN39331 – Certified through China quality certification centre |
– Certificate No. : 2002010105011347 – Certified through China quality certification centre |
* All substances of the cable meet the requirements of RoHS Directive-compliant
