Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor

500 m
MOQ
On Request
Price
Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 3.6/6 KV
Insulation: XLPE
No. Of Conductor: 3 Core
Sheath: PVC Compound
Conductor Material: Bare Copper Class 2
Manufacturer: Shenzhen Chengtiantai
High Light:

xlpe power cable

,

mv power cable

Basic Infomation
Place of Origin: Shenzhen, China (mainland)
Brand Name: Chengtiantai
Certification: CE, ISO, IEC
Model Number: YJV22-3.6/6-3C
Payment & Shipping Terms
Packaging Details: Iron wooden drum or as required
Delivery Time: 7/15 working days
Payment Terms: L/C, T/T
Supply Ability: 18,000 m per month
Product Description

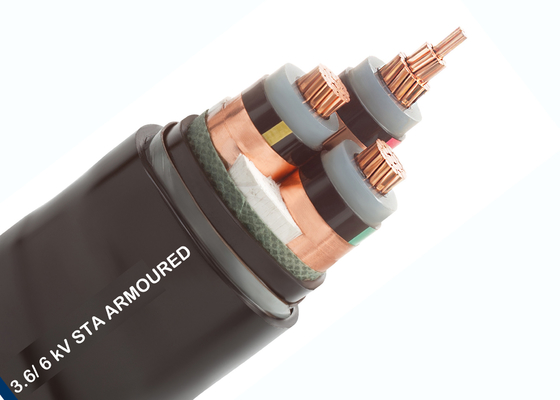

3,6/ 6 kV 3 core XLPE Insulated Steel Tape Armoured 3 core Medium Voltage Power Cable



Annealed Stranded Copper Conductor,XLPE Insulation,Copper Tape Screened, Core laid up, PVC Innersheathed, Armoured and PVC outer sheathed power cable.



The 3 cores cables are designed for distribution of electrical power with nominal voltage Uo/ U:3.6/6 KV and frequency 50Hz.



Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 0

  CONSTRUCTION:

1. CONDUCTOR

– Bare copper class 2 to IEC 60228, round, multiwire stranded and compact

2. CONDUCTOR SCREEN

– Inner semi-conducting coating

3. INSULATION

– Core insulation of cross-linked polyethylene (XLPE)

4. INSULATION SCREEN

– Outer conductive layer extruded and per-manently welded with the core insulation

Semi-conducting type
– Over the outer semi-conducting layer, a semiconducting tape must be used.

5. METAL SCREEN

– copper tapes helically with a minimum thickness of 0,1 mm.

6. FILLER

– PP filler

7. WRAPPING TAPE

INNER SHEATH

– Polyvinyl Chloride ( PVC ) Compound

ARMOR WITH

Galvanized Double Steel Tape minimum thickness of 0,1 mm

8. SHEATH

– Outer sheath of PVC compound

Core identification:

colored tapes under screen.

Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 1

  STANDER

International:IEC60502-2

National:GB/T 12706.1-2008

  TECHNICAL DATA

Temperature range
– during installation up to -5°C



Operating temperature
– max. +90°C



Short circuit temperature
+250°C (short circuit duration max. 5 s)



Minimum bending radius
– 15 x cable Ø


Nominal voltage
– U0/U 3.6/6 kV

Operating voltage, 50 Hz
– for 3.6/6 kV = max. 7.2 kV

Test voltage(V/5 min)
– for3.6/6 kV = 12 kV

Breaking strength:

– min. 200%
Tensile strength:

– min. 12,5 N/mm2



  3.6/ 6 kV XLPE Insulated, Copper conductor, single core, screened, PVC sheathed



No.cores x
cross-sec.
Insulation
thickness
Inner Sheath
thickness
Sheath
thickness
Outer Ø
approx.
weight
approx.
Current ratings in air 30℃ Current ratings buried 20℃
mm² mm mm mm mm kg / km A A
3 x 35 2.5 1.3 2.3 43.5 2993 144 181
3 x 50 2.5 1.3 2.4 46.5 3601 172 215
3 x 70 2.5 1.4 2.5 49.3 4368 213 263
3 x 95 2.5 1.4 2.6 54.3 5348 261 315
3 x 120 2.5 1.5 2.8 57.9 6303 301 358
3 x 150 2.5 1.6 2.9 61.7 7405 341 402
3 x 185  2.5 1.6 3.0 65.4 8646 392 456
3 x 240 2.6 1.7 3.2 70.7 10573 459 527
3 x 300 2.8 1.8 3.4 77.3 12779 532 599
3 x 400 3.0 2.0 3.7 88.1 17225 624 685



*Dimensions and specifications may be changed without prior notice.



  MEDIUM VOLTAGE CABLE TESTING



Routine tests: Sample tests: Type tests:
These non-destructive tests are normally carried out on all lengths manufactured.
- Conductor resistivity
- Spark test on oversheath
- Voltage tests on sheath
- D.C. voltage test on oversheath
These potentially destructive tests are normally carried out on every production run.
- Examination of conductor and dimensions
- Hot set test for XLPE insulation
- Insulation and oversheath thickness
- Four hour voltage test
These destructive tests are normally carried out in addition to the above tests on commencement of a particular cable supply to validate its design.
- Electrical type tests including bending and heat cycle
- Non-electrical type tests including mechanical properties after ageing and tests under fire conditions.



  PACKING AND SHIPPING



Packing: steel wooden drum, other as required ; standard delivery length is 300 m



Packaging details :

Delivery :

Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 2 Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 3

Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 4

Steel Wooden Drums Cable Drum In container  shipped in 15 days after payment



  Cable Drum Data



CABLE DRUMS D1=Flange Diameter(mm) W=Useful Width (mm) D2=Barrel Diameter(mm)
Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 5 1000 700 500
1100 700 550
1200 700 600
1400 750 710
1600 900 900
1800 1120 1000
2400 1150 1300





  Delivery Port:



Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 6 Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 7 Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 8
Port of Shenzhen  Port of Hongkong  Port of Guangzhou





  Our production in numbers



Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 9

● Cable production started 1983
35 years of cable manufacturing experience

● Sales in 2016 about 500 million USD

100,000 m2 Production area
350 Will-trained employees
● Exported more than 22 countries
2 Manufacturing plant
1 R&D Center

200 Sets Of Testing Equipment

100 Testing Items
8 workshop
40 wire drawing machines
10 bunching machines
28 Extruder system
42 stranding machines
10 Braiding machines


  Shenzhen chengtiantai cable operates certified management systems compliant with:

  Certificat Information
Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 10
ISO 9001:2008
Quality management systems



Certificat ISO 9001:2008
- Shenzhen chengtiantai cable industry development Co.Ltd. ;
Certified through Guangdong quality Testing CTC Certification Co.Ltd.;
Valid until 13 January 2019
Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 11
ISO 14001:2004
Environmental management systems

Certificat ISO 14001:2004

- Shenzhen chengtiantai cable industry development Co.Ltd. ;

Certified through Guangdong quality Testing CTC Certification Co.Ltd.;

Valid until 13 January 2019

Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 12
OHSAS 18001:2007
Assessment specification for occupational health & safety management systemsenvironmental management systems
Certificat OHSAS 18001:2007
- Shenzhen chengtiantai cable industry development Co.Ltd. ;
Certified through Guangdong quality Testing CTC Certification Co.Ltd.;
Valid until 13 January 2019



  Manufacturing Process Of Medium Voltage Power Cable



Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 13 Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 14 Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 15
1. copper rod 2. wire drawing 3. wire stranding
Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 16 Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 17 Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 18
4.Triple Extrusion Insulation 5.Screening Process 6. outer covering Process
Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 19 Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 20 Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 21
7. Sheath Marking 8. Packing 9. Partial discharge Inspection



  Some great shot on our manufacturing plant



Located in: Chengtiantai Industrial Park, Guangming New District, Shen zhen P. R. China 518106

Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 22Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 23Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 24Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 25
Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 26Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 27Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 28
Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 29


  Customer services:


Three Core Armoured Cable , XLPE Armoured Cable Bare Copper Class 2 Conductor 30

  RECOMMENDED ORDERING PARAMETERS

  CONTACT

For prompt quotation / supplies please make sure your inquiries and your orders are
securing the following data :

1 - International or Special Standard. (Alternatively, the precise usage of the cable.)
2 - Rated voltage.
3 - Copper or Aluminium conductors.
4 - Size of each conductor.
5 - Insulation material : XLPE or others.
6 - Number and identification of conductors.
7 - Other requirements.
8 - Packing.
9 - Required delivery time.
10 - Required validity.

If this all seems a litle too technical for you, then why not get in touch with us.



We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.



Tel:+86 755 6114 5028
Fax:+86 755 61137976
E-mail : cttcable@hotmail.com
Head office:chengtiantai Industrial Park, Lisonglang community, Gongming office, Guangming district, Shenzhen P.R. China 518106



  WARRANTY



For a period commencing on the date shipped the Goods to Buyer and continuing for a period of 12 months thereafter.
