Home /Products/Copper Conductor Cable/Heat Resistant wire 1.5 sq.mm H05V2-U Fixed Wiring Cable Copper conductor Heat resistant PVC Compound 100 m/ coil

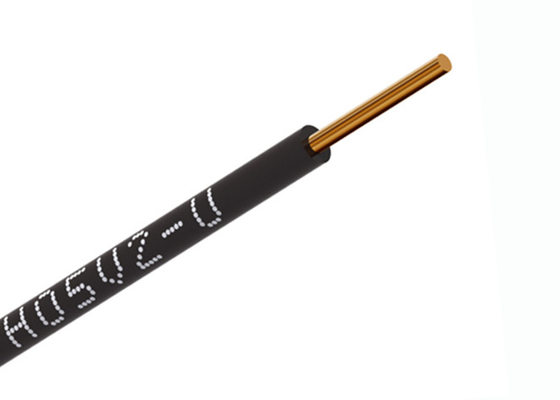

Heat Resistant wire 1.5 sq.mm H05V2-U Fixed Wiring Cable Copper conductor Heat resistant PVC Compound 100 m/ coil

100 Unit
MOQ
On Request
Price
Heat Resistant wire 1.5 sq.mm H05V2-U Fixed Wiring Cable Copper conductor Heat resistant PVC Compound 100 m/ coil
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 300/500 V
Conductor: Copper Conductor
Conductor Type: Solid
Insulated: PVC Compound
Temperature Rating: - 5 ℃ ~ + 90 °C
Minimum Bending Radius: 4 × Outer Diameter
Highlight:

copper electrical wire

,

electrical copper cable
Basic Infomation
Place of Origin: China mainland
Brand Name: Shenzhen chengtiantai cable
Certification: CE,CB
Model Number: H05V2-U
Payment & Shipping Terms
Packaging Details: Coil in foil / drum
Delivery Time: 15 working days after payment
Product Description





H05V2-U single-core non-sheathed cable for internal wiring 1 x 1.5 mm²





  Quick details:





Heat Resistant wire 1.5 sq.mm H05V2-U Fixed Wiring Cable Copper conductor Heat resistant PVC Compound 100 m/ coil 0

Product category:

 H05V2-U

Number of cores:

 1

Nominal cross section:

 1 x 1.5 mm²

Overall diameter approx:

 2.0 mm

Net weight approx:

8 kg / km

Standard delivery length:

 100 m

Conductor DC resistant at 20°C:

 36 Ohm / km

Current carrying capacity:

 13 A





  Description



Applications:

The cable may first be used for fixed, protected installation in or at lighting fixtures with maximum 90°C conductor temperature.
Standards/references:

  • International: IEC 60227 IEC07
  • National: GB/T5023-2008​

Certificates, approvals:

  • CE
  • CCC (China Compulsory Certificate, CCC)
  • All substances of the cable meet the requirements of RoHS Directive

​Color options: red, yellow, blue, black, brown, green, grey, white, green/yellow (Other colors can be supplied on request)



  Characteristics





  Construction characteristics

Conductor material bare copper class 1
Insulation Lead-free heat resistant PVC compound

  Dimensional characteristics
Nominal cross-section 1.5 mm2
No of Conductors 1
Nominal overall diameter 2.0 mm
Approximate weight 8 kg / km

  Electrical characteristics
Rated voltage Uo/U (Um) 300 / 500 V
Maximum current rating air 25°C 13 A
Maximum DC resistance, conductor 20°C 36 Ω / km
Test voltage 2000 V

  Usage characteristics
Maximum operating temperature 90 °C
Short-circuit max conductor temperature(duration up to 5 S) 160 °C
Temperature range - 5 to + 90 °C

  Installation conditions

Installation temperature 5 °C
Minimum bending radius 4 x cable diameter
Recommended maximum tensile stress 50 N / mm²
Note:
  • Photographs are not to scale and do not represent detailed images of the respective products
  • Prices are net prices without VAT and surcharges
  • Sale to business customers only
  • Information in this document is subject to change without notice
