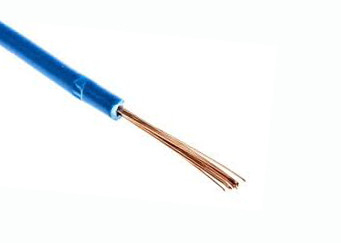

Flexible Heat Resistant wire 0.5 sq.mm H05V2-K Fixed Wiring Cable Copper conductor Heat resistant PVC Compound Insulated

100 Unit
MOQ
On Request
Price
Flexible Heat Resistant wire 0.5 sq.mm H05V2-K Fixed Wiring Cable Copper conductor Heat resistant PVC Compound Insulated
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 300/500 V
Conductor: Copper Conductor
Conductor Type: Strand
Insulated: PVC Compound
Temperature Rating: - 5 ℃ ~ + 90 °C
Minimum Bending Radius: 4 × Outer Diameter
Highlight:

copper electrical wire

,

electrical copper cable

Basic Infomation
Place of Origin: China mainland
Brand Name: Shenzhen chengtiantai cable
Certification: CE, CB, Rhos, CCC
Model Number: H05V2-K
Payment & Shipping Terms
Packaging Details: Coil in foil / drum
Delivery Time: 15 working days after payment
Product Description







H05V2-K single-core non-sheathed cable for internal wiring 1 x 0.5 mm²






  Quick details:





Product category: H05V2-K
Number of cores: 1
Nominal cross section: 1 x 0.5 mm²
Overall diameter approx: 2.0 mm
Net weight approx: 8.7 kg / km
Standard delivery length: 100 m
Conductor DC resistant at 20°C: 36 Ohm / km
Current carrying capacity: 13 A







  Description





Applications:
The cable may first be used for fixed, protected installation in or at lighting fixtures with maximum 90°C conductor temperature.
Standards/references:

  • International: IEC 60227 IEC08
  • National: GB/T5023-2008

Certificates, approvals:

  • CE
  • CCC (China Compulsory Certificate, CCC)
  • All substances of the cable meet the requirements of RoHS Directive

Color options:

red, yellow, blue, black, green, green/yellow (other colors can be supplied on request)





  Characteristics




  Construction characteristics

Conductor material bare copper class 5
Insulation Lead-free heat resistant PVC compound

  Dimensional characteristics

Nominal cross-section 0.5 mm2

Outer Ø min. - max.

2.0 - 2.5 mm
Approximate weight 8 kg / km

  Electrical characteristics

Rated voltage Uo/U (Um) 300 / 500 V
Maximum current rating air 25°C 13 A
Maximum DC resistance, conductor 20°C 36 Ω / km
Test voltage 2000 V

  Usage characteristics

Maximum operating temperature 90 °C
Short-circuit max conductor temperature(duration up to 5 S) 160 °C
Temperature range - 5 to + 90 °C

  Installation conditions

Installation temperature 5 °C
Minimum bending radius 4 x cable diameter
Recommended maximum tensile stress 50 N / mm²
Note:
  • Photographs are not to scale and do not represent detailed images of the respective products
  • Prices are net prices without VAT and surcharges
  • Sale to business customers only
  • Information in this document is subject to change without notice
