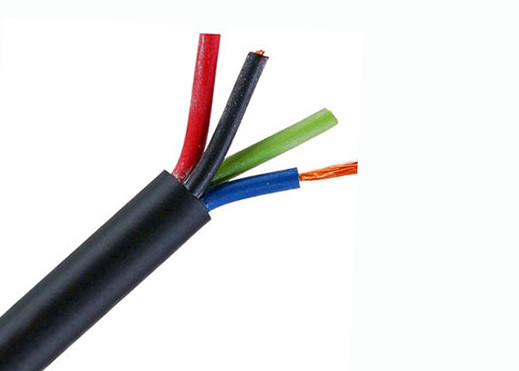

Indoor Use H05VV F Copper Conductor Cable PVC Outer Sheath Austrian Type YMM

100 Unit
MOQ
On Request
Price
Indoor Use H05VV F Copper Conductor Cable PVC Outer Sheath Austrian Type YMM
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 300/500 V
Conductor: Copper Conductor
Conductor Type: Fine Wire
Insulated: PVC Compound
Temperature Rating: - 5 ℃ ~ + 70 ℃
Minimum Bending Radius: 4 × Outer Diameter
Highlight:

copper electrical wire

,

electrical copper cable
Basic Infomation
Place of Origin: China mainland
Brand Name: Shenzhen chengtiantai cable
Certification: CE, CB, Rhos, CCC
Model Number: H05V-F
Payment & Shipping Terms
Packaging Details: Coil in foil / drum
Delivery Time: 15 working days after payment
Payment Terms: L/C, T/T
Supply Ability: 50000 m / day
Product Description



PVC insulated multi-core cables with flexible conductor H05VV-F 4 x 2.5 mm²



Standards/references:

  • International: IEC 60227
  • National: GB/T5023-2008

Certificates, approvals:

  • CE
  • CCC (China Compulsory Certificate, CCC)
  • All substances of the cable meet the requirements of RoHS Directive


  Quick details



Product category: H05VV-F
Austrian type: YMM
Number of cores: 4
Nominal cross section: 4 x 2.5 mm²
Overall diameter approx: 10.1 - 12.5 mm
Net weight approx: 200 kg / km
Standard delivery length: 100 m
Conductor DC resistant at 20°C: 7.98 Ohms / km
Current carrying capacity: 27 A



Color options: red, yellow, blue, black, green, green/yellow (other colors can be supplied on request)



  Characteristics



  Construction characteristics
Conductor material Fine wire according to IEC 60228 class 5
Insulation polyvinyl chloride (PVC)
Outer Sheath polyvinyl chloride (PVC)

  Dimensional characteristics
Number of cores 4
Conductor cross-section 2.5 mm2
Outer diameter Ø min. - max. 10.1 - 12.5 mm
Approximate weight 200 kg / km

  Electrical characteristics
Rated voltage Uo/U (Um) 300 / 500V
Maximum current rating air 25°C 27 A
Maximum DC resistance, conductor 20°C 7.98 Ω / km
Test voltage 2000 V

  Usage characteristics
Maximum operating temperature 70 °C
Short-circuit max conductor temperature(duration up to 5 S) 160 °C
Temperature range - 5 to + 70 °C
  Installation conditions
Installation temperature 5 °C
Minimum bending radius 4 x cable diameter
Recommended maximum tensile stress 50 N / mm²

Note:

  • Photographs are not to scale and do not represent detailed images of the respective products
  • Prices are net prices without VAT and surcharges
  • Sale to business customers only
  • Information in this document is subject to change without notice
Shenzhen chengtiantai cable operates certified management systems compliant with:

  Certificat Information
Indoor Use H05VV F Copper Conductor Cable PVC Outer Sheath Austrian Type YMM 0



ISO 9001:2008

quality management systems

 Certificat ISO 9001:2008
- Shenzhen chengtiantai cable industry development Co.Ltd. ;
Certified through Guangdong quality Testing CTC Certification Co.Ltd.;
Valid until 13 January 2019
Indoor Use H05VV F Copper Conductor Cable PVC Outer Sheath Austrian Type YMM 1

ISO 14001:2004

environmental management systems

Certificat ISO 14001:2004

- Shenzhen chengtiantai cable industry development Co.Ltd. ;

Certified through Guangdong quality Testing CTC Certification Co.Ltd.;

Valid until 13 January 2019
Indoor Use H05VV F Copper Conductor Cable PVC Outer Sheath Austrian Type YMM 2

OHSAS 18001:2007

assessment specification for occupational health & safety management systemsenvironmental management systems

Certificat OHSAS 18001:2007

- Shenzhen chengtiantai cable industry development Co.Ltd. ;

Certified through Guangdong quality Testing CTC Certification Co.Ltd.;

Valid until 13 January 2019
