Home /Products/Copper Conductor Cable/300 / 500 Voltage Copper Conductor Cable Lightweight 6.0 - 7.6 Mm Overall Diameter

300 / 500 Voltage Copper Conductor Cable Lightweight 6.0 - 7.6 Mm Overall Diameter

100 Unit
MOQ
On Request
Price
300 / 500 Voltage Copper Conductor Cable Lightweight 6.0 - 7.6 Mm Overall Diameter
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 300/500 V
Conductor: Copper Conductor
Conductor Type: Fine Wire
Insulated: PVC Compound
Temperature Rating: - 5 ℃ ~ + 70 ℃
Minimum Bending Radius: 4 × Outer Diameter
Highlight:

copper electrical wire

,

electrical copper cable
Basic Infomation
Place of Origin: China mainland
Brand Name: Shenzhen chengtiantai cable
Certification: CE, CB, Rhos, CCC
Model Number: H05VV-F
Payment & Shipping Terms
Packaging Details: Coil in foil / drum
Delivery Time: 15 working days after payment
Payment Terms: L/C, T/T
Supply Ability: 10 km / day
Product Description

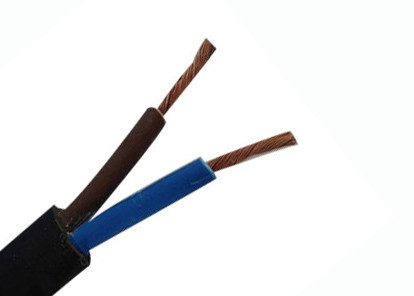

PVC insulated multi-core cables with flexible conductor H05VV-F 2 x 0.75 mm²







  Quick details




Product category: H05VV-F
Austrian type: YMM
Number of cores: 2
Nominal cross section: 2 x 0.75 mm²
Overall diameter approx: 6.0 - 7.6 mm
Net weight approx: 55 kg / km
Standard delivery length: 100 m
Conductor DC resistant at 20°C: 26 Ohms / km
Current carrying capacity: 13 A







  Description





Applications:

For household appliances working under humid and medium mechanical stress.

Installation:

  • In industries
  • In houses
  • Suitable for installation in electrical installation pipes or similar closed systems - surface or flush mount

Standards/references:

  • International: IEC 60227
  • National: GB/T5023-2008

Certificates, approvals:

  • CE
  • CCC (China Compulsory Certificate, CCC)
  • All substances of the cable meet the requirements of RoHS Directive

Color options:

red, yellow, blue, black, green, green/yellow (other colors can be supplied on request)





  Characteristics





  Construction characteristics
Conductor material Fine wire according to IEC 60228 class 5
Insulation polyvinyl chloride (PVC)
Outer Sheath polyvinyl chloride (PVC)

  Dimensional characteristics
Number of cores 2
Conductor cross-section 0.75 mm2
Outer diameter Ø min. - max. 6.0 - 7.6 mm
Approximate weight 55 kg / km

  Electrical characteristics
Rated voltage Uo/U (Um) 300 / 500 V
Maximum current rating air 25°C 13 A
Maximum DC resistance, conductor 20°C 26 Ω / km
Test voltage 2000 V

  Usage characteristics
Maximum operating temperature 70 °C
Short-circuit max conductor temperature(duration up to 5 S) 160 °C
Temperature range - 5 to + 70 °C

  Installation conditions
Installation temperature 5 °C
Minimum bending radius 4 x cable diameter
Recommended maximum tensile stress 50 N / mm²
Note:
  • Photographs are not to scale and do not represent detailed images of the respective products
  • Prices are net prices without VAT and surcharges
  • Sale to business customers only
  • Information in this document is subject to change without notice
CUSTOMER SERVICES:

Shenzhen chengtiantai cable operates certified management systems compliant with: ISO 9001:2008 / ISO 14001:2004 / OHSAS 18001:2007



● Cable production started 1983
● 35 years of cable manufacturing experience

● Sales in 2016 about 500 million USD

● 100,000 m2 Production area
● 350 Will-trained employees

● 8 workshop
● 1 R&D Center



We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.





Dimensions and specifications may be changed without prior notice.
