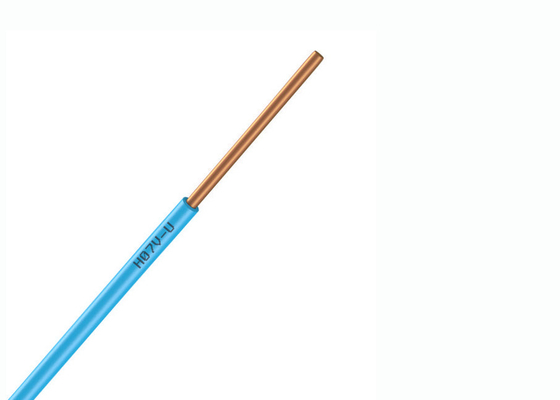

PVC insulated non-sheathed single core Wires H05V-U 1 x 1.0 mm²
Quick details
| Product category: | H05V-U |
| Austrian type: | YSe |
| Number of cores: | 1 |
| Nominal cross section: | 1 x 1.0 mm² |
| Overall diameter approx: | 2.7 mm |
| Net weight approx: | 11.5 kg / km |
| Standard delivery length: | 100 m |
| Conductor DC resistant at 20°C: | 18.1 Ohms / km |
| Current carrying capacity: | 20 A |
Description
Applications:
Standards/references:
Certificates, approvals:
Color options: |
Characteristics
Construction characteristics | |
| Conductor material | bare copper class 1 |
| Insulation | polyvinyl chloride (PVC) with different colors |
Dimensional characteristics | |
| Nominal cross-section | 1.0 mm2 |
| No of Conductors | 1 |
| Average insulation thickness | 0.6 mm |
| Max overall diameter | 2.7 mm |
| Approximate weight | 11.5 kg / km |
Electrical characteristics | |
| Rated voltage Uo/U (Um) | 300 / 500 V |
| Maximum current rating air 25°C | 20 A |
| Maximum DC resistance, conductor 20°C | 18.1 Ω / km |
| Test voltage | 2000 V |
Usage characteristics | |
| Maximum operating temperature | 70 °C |
| Short-circuit max conductor temperature(duration up to 5 S) | 160 °C |
| Temperature range | - 5 to + 70 °C |
Installation conditions | |
| Installation temperature | 5 °C |
| Minimum bending radius | 4 x cable diameter |
| Recommended maximum tensile stress | 50 N / mm² |
Note:
| |
