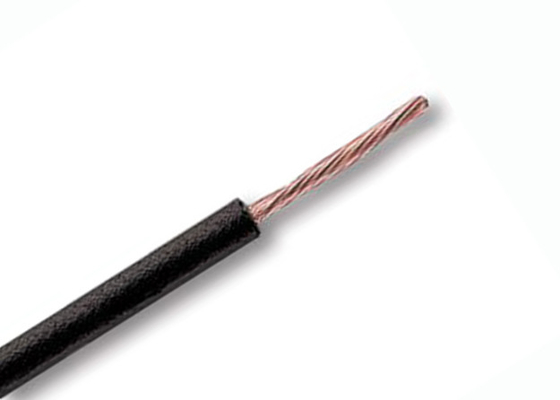

PVC insulated non-sheathed single core wires H05V-K 1 x 0.75 mm²
Quick details
Product category: | H05V-K |
Austrian type: | Ysf |
Number of cores: | 1 |
Nominal cross section: | 1 x 0.75 mm² |
Overall diameter approx: | 2.5 mm |
Net weight approx: | 12 kg / km |
Standard delivery length: | 100 m |
Conductor DC resistant at 20°C: | 26 Ohms / km |
Current carrying capacity: | 17 A |
Description
Applications: In dry rooms, switching and distribution panels, for laying in conduit on and under plaster and/or on insulating supports above plaster. Installation:
Standards/references:
Certificates, approvals:
Color options: red, yellow, blue, black, green, green/yellow (other colors can be supplied on request) |
Characteristics
Construction characteristics |
|
Conductor material | bare copper class 5 |
Insulation | polyvinyl chloride (PVC) with different colors |
Dimensional characteristics |
|
Nominal cross-section | 0.75 mm2 |
No of Conductors | 1 |
Max overall diameter | 2.5 mm |
Approximate weight | 12 kg / km |
Electrical characteristics |
|
Rated voltage Uo/U (Um) | 300 / 500V |
Maximum current rating air 25°C | 17 A |
Maximum DC resistance, conductor 20°C | 26 Ω / km |
Test voltage | 2000 V |
Usage characteristics |
|
Maximum operating temperature | 70 °C |
Short-circuit max conductor temperature(duration up to 5 S) | 160 °C |
Temperature range | - 5 to + 70 °C |
Installation conditions |
|
Installation temperature | 5 °C |
Minimum bending radius | 4 x cable diameter |
Recommended maximum tensile stress | 50 N / mm² |
