2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof

500 m
MOQ
On Request
Price
2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 0.6/1 KV
Insulation: XLPE
No. Of Conductor: 2 Core
Sheath: PVC Compound
Conductor Material: Bare Copper Class 2
Manufacturer: Shenzhen Chengtiantai
Highlight:

electrical power cable

,

xlpe pvc cable

Basic Infomation
Place of Origin: Shenzhen City, Mainland China
Brand Name: Chengtiantai cable
Certification: CE, CB
Model Number: YJV-2C
Payment & Shipping Terms
Packaging Details: Steel wooden Drum
Delivery Time: 15 working days after payments
Payment Terms: L/C, T/T
Product Description

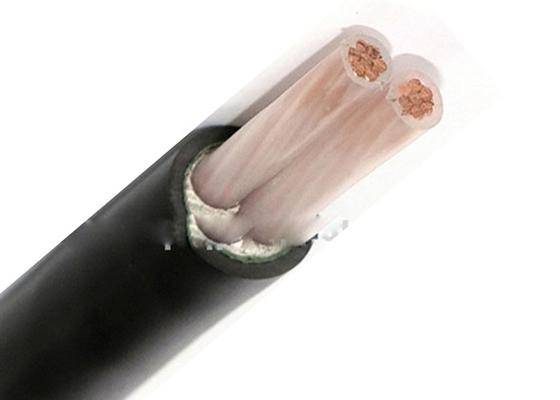

Low Voltage Power Cable 0.6/1 kV 2 Core



Cu-Conductor, XLPE Insulated, PVC Sheathed,Unarmoured and Armoured to IEC60502



Quick details:



0.6/ 1 kV 2 Core Cable, Class 2 Conductor, Copper Conductor, XLPE Insulated,  PVC Sheathed


2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 0

STANDARDS

International: IEC 60502-1
National:GB/ T 12706.1-2008

  CONSTRUCTION:
1. CONDUCTOR
– Bare copper conductor, Class 2 to IEC 60228
2. INSULATION
– XLPE Compound
3. OUTER SHEATH :
– PVC Compound
Sheath colour :
– Black

  APPLICATIONS:

Power cables for energy supply are installed in open air, in underground, indoors, in cable ducts, power stations, residental connections and street lighting as well as in subscriber networks, where mechanical damages are not be expected.

*Note: when required for a particular application, other colors are available.



  Electrical Characteristics



Rated Voltage Uo/U 0.6/1 kV
Maximum operating voltage 1.2 kV
Frequence 50 Hz
Test voltage : 3500 V


  Usage Characteristics



Permissible operating temperature at conductor +90°C
short circuit temperature ( duration max. 5 s) 250 °C
Minimum installation temperature should not be lower than 0°C
Max. conductor permissible tensile stress 50 N/mm²
Minimum bending radius 15 x cable Ø



  Physical and Electrical Characteristics:



0.6/1 kV XLPE insulated 2 Core  Unarmoured cable



No.cores x
cross-sec.
Insulation
thickness
Sheath
thickness
Nominal
value
Outer Ø
approx.
weight
approx.
Current ratings in air 30℃ Current ratings buried 20℃ maximum DC resistance at 20℃
mm² mm mm mm kg / km A A Ω/km
2×2.5 0.7 1.8 10.6 140 37 54 7.41
2×4.0 0.7 1.8 11.6 192 47 70 4.61
2×6.0 0.7 1.8 12.6 245 60 86 3.08
2×10 0.7 1.8 15.2 362 84 115 1.83
2×16 0.7 1.8 16.6 514 113 149 1.15
2×25 0.9 1.8 19.8 734 150 191 0.73
2×35 0.9 1.8 17.2 968 185 231 0.52
2×50 1.0 1.8 19.4 1190 226 275 0.39
2×70 1.1 1.9 22.0 1591 287 337 0.27
2×95 1.1 2.0 24.6 2117 354 405 0.19
2×120 1.2 2.1 27.4 2617 431 463 0.15
2×150 1.4 2.2 30.2 3239 494 522 0.12
2×185 1.6 2.3 34.0 5126 592 591 0.10



0.6/1 kV XLPE insulated 2 Core cable Steel tape Armoured



No.cores x
cross-sec.
Insulation
thickness
Sheath
thickness
Nominal
value
Outer Ø
approx.
weight
approx.
Current ratings in air 30℃ Current ratings buried 20℃ maximum DC resistance at 20℃
mm² mm mm mm kg / km A A Ω/km
2×4 0.7 1.8 13.5 265.3 50 73 4.61
2×6 0.7 1.8 14.5 325.4 63 89 3.08
2×10 0.7 1.8 17.1 447 87 118 1.83
2×16 0.7 1.8 19.2 602.1 116 152 1.15
2×25 0.9 1.8 22.6 863 153 194 0.73
2×35 0.9 1.8 24.9 1099 188 234 0.52
2×50 1.0 1.8 26.8 1357 229 278 0.39
2×70 1.1 1.9 30.4 1815 291 341 0.27
2×95 1.1 2.0 35.8 2762 357 408 0.19
2×120 1.2 2.2 39.2 3366 434 466 0.15
2×150 1.4 2.3 43.6 4146 497 525 0.12
2×185 1.6 2.4 47.6 4862 595 594 0.10



*Dimensions and specifications may be changed without prior notice.

  Packaging & Delivery


Packaging details :

Delivery :

2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 1 2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 2

2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 3

Steel Wooden Drums Cable Drum In container  shipped in 15 days after payment



  Cable Drum Data



CABLE DRUMS D1=Flange Diameter(mm) W=Useful Width (mm) D2=Barrel Diameter(mm)
2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 4 1000 700 500
1100 700 550
1200 700 600
1400 750 710
1600 900 900
1800 1120 1000
2400 1150 1300





  Delivery Port:



2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 5 2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 6 2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 7
Port of Shenzhen  Port of Hongkong  Port of Guangzhou



  Manufacturing Process Of Low Voltage Power Cable ( Unarmored )


2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 8 2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 9 2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 10
1. copper rod 2. wire drawing 3. wire stranding
2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 11 2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 12 2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 13
4.Inner sheath 5. Assembling 6.outer covering Process
2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 14 2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 15 2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 16
7. Sheath Marking 8. Packing 9. cable delivering



  Our production in numbers



21/ 35 kV XLPE Insulated Medium Voltage Power Cable Single core

● Cable production started 1983
35 years of cable manufacturing experience

● Sales in 2016 about 500 million USD

100,000 m2 Production area
350 Will-trained employees
● Exported more than 22 countries
2 Manufacturing plant
1 R&D Center

200 Sets Of Testing Equipment

100 Testing Items
8 workshop
40 wire drawing machines
10 bunching machines
28 Extruder system
42 stranding machines
10 Braiding machines



  Some great shots of our manufactering plant


2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 18 2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 19 2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 20
Mannufacturing plant R&D Building Bird's eye view of the plant
2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 21 2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 22 2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 23
MV Power Cable Workshop Cable Reels Waiting to be shipped out Shipping

  Shenzhen chengtiantai cable operates certified management systems compliant with:

  Certificat Information
2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 24



ISO 9001:2008

quality management systems

Certificat ISO 9001:2008
- Shenzhen chengtiantai cable industry development Co.Ltd. ;
Certified through Guangdong quality Testing CTC Certification Co.Ltd.;
Valid until 13 January 2019

2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 25

ISO 14001:2004

environmental management systems

Certificat ISO 14001:2004

- Shenzhen chengtiantai cable industry development Co.Ltd. ;

Certified through Guangdong quality Testing CTC Certification Co.Ltd.;

Valid until 13 January 2019

2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 26

OHSAS 18001:2007

assessment specification for occupational health & safety management systemsenvironmental management systems

Certificat OHSAS 18001:2007

- Shenzhen chengtiantai cable industry development Co.Ltd. ;

Certified through Guangdong quality Testing CTC Certification Co.Ltd.;

Valid until 13 January 2019





  Customer services:



2 Core 0.6/1 kV XLPE Insulated Power Cable PVC Sheathed Fireproof 27

  RECOMMENDED ORDERING PARAMETERS

  CONTACT

For prompt quotation / supplies please make sure your inquiries and your orders are
securing the following data :

1 - International or Special Standard. (Alternatively, the precise usage of the cable.)
2 - Rated voltage.
3 - Copper or Aluminium conductors.
4 - Size of each conductor.
5 - Insulation material : XLPE or others.
6 - Number and identification of conductors.
7 - Other requirements.
8 - Packing.
9 - Required delivery time.
10 - Required validity.

If this all seems a litle too technical for you, then why not get in touch with us.



We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.



Tel:+86 755 6114 5028
Fax:+86 755 61137976
E-mail : cttcable@hotmail.com
Head office:chengtiantai Industrial Park, Lisonglang community, Gongming office, Guangming district, Shenzhen P.R. China 518106



  WARRANTY



For a period commencing on the date shipped the Goods to Buyer and continuing for a period of 12 months thereafter.
