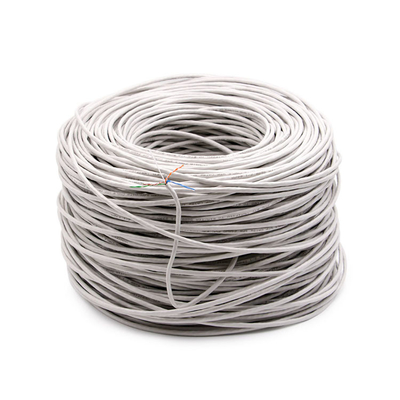

Cat.6 SF/UTP LSZH 4 Pair
STANDARDS
International:
ANSI/TIA 568-C.2; UL 1666; RoHS Compliant Directive 2011/65/EU; UL 444; ISO/IEC 11801 Ed. 2.0 (Class D)
National: YD/T1019-2001
CONSTRUCTION
– Conductor: Solid bare copper
– Insulation: Polyethylen - Two insulated conductors twisted to a pair
– Cross filler - 4/2 laid up together
– Screen: Al / PET foil
– Tinned copper braid
– Outer sheath: LSZH
| Conductor diameter | Ø 0.575 mm(23 AWG) |
| Insulation diameter | 1.1 mm |
| sheath thikness | 0.55 mm |
| Drain Wire diameter | 0.4mm |
| cable diameter | 8.2 mm |
| Twisted pitch(mm) | ≤20 |
| Cable pitch (mm) | ≤100 |
| Frequency | RL | ATTEN | NEXT | PSNEXT | ELFEXT | PSELFEXT | DELAY |
|---|---|---|---|---|---|---|---|
| (MHZ) | (db) | (db/100m) | (db/100m) | (db/100m) | (db/100m) | (db/100m) | (ns/100m) |
| 0.772 | 19.5 | 1.78 | 76.2 | 75.3 | 70.2 | 73.1 | 570 |
| 1 | 20 | 2 | 65.1 | 62.5 | 64.3 | 71.7 | 565 |
| 4 | 23 | 4 | 57.2 | 52.7 | 53.1 | 68.2 | 559 |
| 10 | 24.5 | 5.5 | 52.3 | 49.1 | 45.9 | 67.1 | 553 |
| 16 | 25 | 7.33 | 50.9 | 47.3 | 44.2 | 65.2 | 547 |
| 20 | 25 | 8 | 48.2 | 44.9 | 29.8 | 57.3 | 542 |
| 25 | 24.3 | 9.5 | 46.3 | 42.7 | 38.6 | 54.1 | 539 |
| 31.3 | 23.6 | 10.7 | 44.1 | 42.1 | 36.4 | 51.9 | 535 |
| 62.5 | 21.5 | 16.21 | 42.9 | 38.7 | 35.1 | 48.9 | 529 |
| 100 | 20.1 | 18.97 | 39.3 | 37.9 | 29.5 | 45.3 | 526 |
| 200 | 18.8 | 29.32 | 36.5 | 32.8 | 26.2 | 41 | 520 |
| 250 | 18 | 31.85 | 33.1 | 30.1 | 24.3 | 37.2 | 515 |
| Approx.Weight | Package | box Dimension(cm) | Packages per 20 ft container |
| 20 - 25 kg | 305 m/ roll pull box | 22 x 35 x 35 | 900 box |
