Cat5e FTP Cable 1000 ft Solid Copper Wire Shielded Ethernet Network Cable

100 units
MOQ
on request
Price
Cat5e FTP Cable 1000 ft Solid Copper Wire Shielded Ethernet Network Cable
Features Gallery Product Description Request A Quote
Features
Specifications
ANSI/ TIA: 5e
Pairs Quantity: 4
Cable Type: SF/ UTP (shielded)
Conductor Material: Solid Copper
Conductor Gauge: 24 AWG (0.51 Mm )
Jacket Material: PVC
Highlight:

copper ethernet cable

,

utp lan cable

Basic Infomation
Place of Origin: Guangdong,China(Mainland)
Brand Name: Shenzhen Chengtiantai
Certification: CE,UL& ROHS
Model Number: Category 5e SF/UTP LSZH Lan cable
Payment & Shipping Terms
Packaging Details: coil in box or reel
Delivery Time: 7 / 15 working days
Payment Terms: L/C, T/T
Supply Ability: 50,000 m/day
Product Description

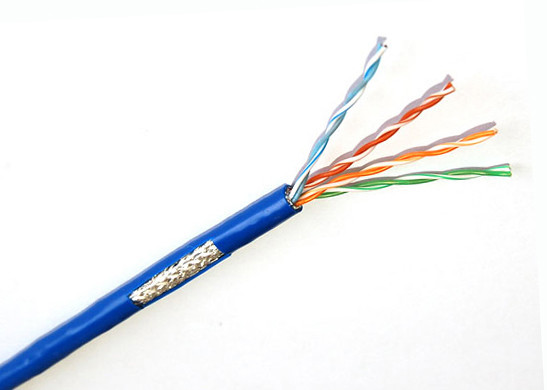

Low-Smoke, Zero-Halogen (LSZH) cable Cat. 5e, 4 Pair, SF/UTP



  Applications:



  • For indoor use

  • For use in computer networking and internet service installations

  • For commercial and residential applications

  • CAT.5e is also used to carry other signals such as telephony and video.

  • Unlike PVC cables and those made of other compounds which produce vast amounts of dense black smoke, toxic fumes and acid gas when exposed to fire, LSZH cables produce very low levels of smoke and toxic fume and no acid gases.



  Standards / references:



International:

ANSI/TIA 568-C.2

UL 1666

RoHS Compliant Directive 2011/65/EU

UL 444

ISO/IEC 11801 Ed. 2.0 (Class D)

National:

​YD/T1019-2001



  Construction



Inner conductor Ø:

Conductor material:

Core insulation:

Color Code:







Separator:

Screen over stranding element:

Screen 2 over stranding:

Outer sheath material:

Sheath thickness:

Outer diameter:

24 AWG(0.51 mm)

Solid Oxygen-free Copper

HDPE

Pair 1: Blue-White/Blue

Pair 2: Orange-White/Orange

Pair 3: Green-White/Green

Pair 4: Brown-White/Brown

-

Aluminium Foil

Copper Wire Braid (Overall)

PVC

0.55 mm

6.8 mm



  Dimensions



Length:

Cable weight:

Wire size:

Overall diameter of insulation:

Overall outside diameter:

305 m/1000 ft

14.48 kg

24AWG (Ø 0.51 mm)

1.02 mm

6.8 mm



  Electrical characteristics



ANSI/TIA Category

Characteristic Impedance (Frequency: 1-200 MHz)

DC Resistance Unbalance, maximum

DC Resistance , maximum at 20˚C

Propagation delay at100 MHz (ns/100m)

Delay Skew

Mutual Capacitance

Nominal Velocity of Propagation (NVP)

Coupling attenuation at 30˚C

Operating Frequency, maximum

5e

100 ± 15 ohms

5 %

9.38 ohms/100 m

<536

≤45 ns

5.6 nF/100 m @ 1 kHz

69%

45MHz(dB)

100 MHz



  Mechanical Properties



Maximum operating temperature:

Operating Temperature Range:

Installation temperature:

Minimum bending radius:

Maximum pulling force

70˚C

-20˚C to 60˚C

0˚C to 60˚C

4 x cable diameter

100 N



  Nominal Transmission characteristics(at 20℃)



Frequency Attenuation (Max) PS NEXT (Min)

NEXT

(Min)

PS ELFEXT (Min) ELFEXT (Min)

TCL

(Min)

EL TCL

(Min)

RL

(Min)

MHz dB dB dB dB/100m dB/100m dB dB dB
4 4.1 53.3 56.3 49 52 44 23 23
8 5.8 48.8 51.8 42.9 45.9 41 16.9 24.5
10 6.5 47.3 50.3 41 44 40 15 25
16 8.2 44.2 47.2 36.9 39.9 38 10.9 25
20 9.3 42.8 45.8 35 38 37 9 25
25 10.4 41.3 44.3 33 36 36 7 24.3
31.25 11.7 39.9 42.9 31.1 34.1 35.1 / 23.6
62.5 17 35.4 38.4 25.1 28.1 32 / 21.5
100 22 32.3 35.3 21 24 30 / 20.1
