PVC Sheath 3 Core Armoured Power Cable YJV22 Cable 50Hz 8.7/ 15 KV

500 m
MOQ
Price on requested
Price
PVC Sheath 3 Core Armoured Power Cable YJV22 Cable 50Hz 8.7/ 15 KV
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 8,7/ 15 KV
Sheath: Polyvinyl Chloride (PVC)
No. Of Cores: 3 Cores
Sheath Color: Standard Color Is Black Other On Request
Conductor: Bare Copper Class 2
Manufacturer: Shenzhen Chengtiantai Cable
Insulation: XLPE Compond
Quotation Valid: 7 Days
Highlight:

underground armoured cable

,

outdoor armoured electrical cable

,

PVC Sheath armoured electrical cable

Basic Infomation
Place of Origin: Guangdong, China(main land)
Brand Name: Chengtiantai cable
Certification: CE, ISO ,ROSH
Model Number: YJV22
Payment & Shipping Terms
Packaging Details: steel-wood drum
Delivery Time: 7/15 working days
Payment Terms: L/C, T/T
Supply Ability: 20 KM/ week
Product Description

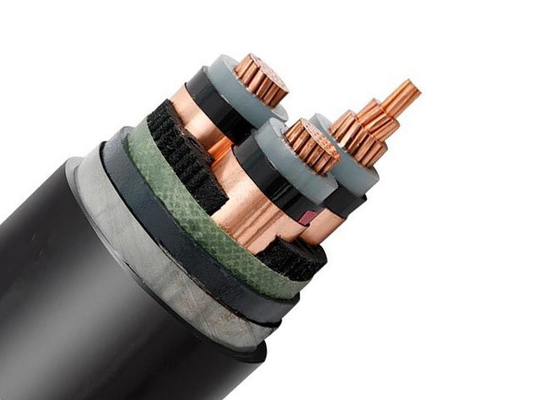

8.7/ 15 kV 3 core XLPE Insulated Steel Tape Armoured 3 core Medium Voltage Power Cable



Annealed Stranded Copper Conductor,XLPE Insulation,Copper Tape Screened, Core laid up, PVC Innersheathed, Armoured and PVC outer sheathed power cable.



The 3 cores cables are designed for distribution of electrical power with nominal voltage Uo/ U:8.7/15 KV and frequency 50Hz.



PVC Sheath 3 Core Armoured Power Cable YJV22 Cable 50Hz 8.7/ 15 KV 0

CONSTRUCTION:

1. CONDUCTOR

– Bare copper class 2 to IEC 60228, round, multiwire stranded and compact

2. CONDUCTOR SCREEN

– Inner semi-conducting coating

3. INSULATION

– Core insulation of cross-linked polyethylene (XLPE)

4. INSULATION SCREEN

– Outer conductive layer extruded and per-manently welded with the core insulation

Semi-conducting type
– Over the outer semi-conducting layer, a semiconducting tape must be used.

5. METAL SCREEN

– copper tapes helically with a minimum thickness of 0,1 mm.

6. FILLER

– PP filler

7. WRAPPING TAPE

INNER SHEATH

– Polyvinyl Chloride ( PVC ) Compound

ARMOR WITH

– Galvanized Double Steel Tape minimum thickness of 0,1 mm

8. SHEATH

– Outer sheath of PVC compound

Core identification:

– colored tapes under screen.

PVC Sheath 3 Core Armoured Power Cable YJV22 Cable 50Hz 8.7/ 15 KV 1

STANDER

International:IEC60502-2

National:GB/T 12706.1-2008

TECHNICAL DATA

Temperature range
– during installation up to -5°C



Operating temperature
– max. +90°C



Short circuit temperature
+250°C (short circuit duration max. 5 s)



Minimum bending radius
– 15 x cable Ø


Nominal voltage
– U0/U 8.7/15 kV

Operating voltage, 50 Hz
– for 8.7/15 kV = max. 17.5 kV

Test voltage(V/5 min)
– for 8.7/15 kV = 30.5KV

Breaking strength:

– min. 200%
Tensile strength:

– min. 12,5 N/mm2



DIMENSIONS AND SPECIFICATIONS



No.cores x
cross-sec.
Insulation
thickness
Inner sheath thickness Sheath
thickness
Nominal
value
Outer Ø
approx.
weight
approx.
Current ratings in air 30℃ Current ratings buried 20℃
mm² mm mm mm mm kg / km A A
3 x 35 rm 4.5 1.4 2.6 53 3816 151 184
3 x 50 rm 4.5 1.5 2.7 56.2 4494 181 218
3 x 70 rm 4.5 1.5 2.8 60 5333 225 267
3 x 95 rm 4.5 1.6 3.0 64.1 6359 273 318
3 x 120 rm 4.5 1.7 3.1 67.5 7338 311 360
3 x 150 rm 4.5 1.7 3.2 71.1 8493 353 404
3 x 185 rm 4.5 1.8 3.3 75 9824 402 456
3 x 240 rm 4.5 1.9 3.5 80.3 11894 473 531
3 x 300 rm 4.5 2.0 3.7 86.9 13932 540 598
3 x 400 rm 4.5 2.1 3.9 97 18650 640 692





*Dimensions and specifications may be changed without prior notice.



MEDIUM VOLTAGE CABLE TESTING



Routine tests: Sample tests: Type tests:
These non-destructive tests are normally carried out on all lengths manufactured.
- Conductor resistivity
- Spark test on oversheath
- Voltage tests on sheath
- D.C. voltage test on oversheath
These potentially destructive tests are normally carried out on every production run.
- Examination of conductor and dimensions
- Hot set test for XLPE insulation
- Insulation and oversheath thickness
- Four hour voltage test
These destructive tests are normally carried out in addition to the above tests on commencement of a particular cable supply to validate its design.
- Electrical type tests including bending and heat cycle
- Non-electrical type tests including mechanical properties after ageing and tests under fire conditions.



PACKING AND SHIPPING



Packing: steel wooden drum, other as required ; standard delivery length is 300 m



Packaging details : Delivery :
PVC Sheath 3 Core Armoured Power Cable YJV22 Cable 50Hz 8.7/ 15 KV 2 PVC Sheath 3 Core Armoured Power Cable YJV22 Cable 50Hz 8.7/ 15 KV 3 PVC Sheath 3 Core Armoured Power Cable YJV22 Cable 50Hz 8.7/ 15 KV 4
Steel Wooden Drums Cable Drum In container shipped in 15 days after payment



Cable Drum Data



CABLE DRUMS D1=Flange Diameter(mm) W=Useful Width (mm) D2=Barrel Diameter(mm)
PVC Sheath 3 Core Armoured Power Cable YJV22 Cable 50Hz 8.7/ 15 KV 5 1000 700 500
1100 700 550
1200 700 600
1400 750 710
1600 900 900
1800 1120 1000
2400 1150 1300





Delivery Port:



PVC Sheath 3 Core Armoured Power Cable YJV22 Cable 50Hz 8.7/ 15 KV 6 PVC Sheath 3 Core Armoured Power Cable YJV22 Cable 50Hz 8.7/ 15 KV 7 PVC Sheath 3 Core Armoured Power Cable YJV22 Cable 50Hz 8.7/ 15 KV 8
Port of Shenzhen Port of Hongkong Port of Guangzhou





Our production in numbers



PVC Sheath 3 Core Armoured Power Cable YJV22 Cable 50Hz 8.7/ 15 KV 9

● Cable production started 1983
35 years of cable manufacturing experience

● Sales in 2016 about 500 million USD

100,000 m2 Production area
350 Will-trained employees
● Exported more than 22 countries
2 Manufacturing plant
1 R&D Center

200 Sets Of Testing Equipment

100 Testing Items
8 workshop
40 wire drawing machines
10 bunching machines
28 Extruder system
42 stranding machines
10 Braiding machines


Shenzhen chengtiantai cable operates certified management systems compliant with:

  Certificat Information
PVC Sheath 3 Core Armoured Power Cable YJV22 Cable 50Hz 8.7/ 15 KV 10
ISO 9001:2008
Quality management systems



Certificat ISO 9001:2008
- Shenzhen chengtiantai cable industry development Co.Ltd. ;
Certified through Guangdong quality Testing CTC Certification Co.Ltd.;
Valid until 13 January 2019
PVC Sheath 3 Core Armoured Power Cable YJV22 Cable 50Hz 8.7/ 15 KV 11
ISO 14001:2004
Environmental management systems

Certificat ISO 14001:2004

- Shenzhen chengtiantai cable industry development Co.Ltd. ;

Certified through Guangdong quality Testing CTC Certification Co.Ltd.;

Valid until 13 January 2019

PVC Sheath 3 Core Armoured Power Cable YJV22 Cable 50Hz 8.7/ 15 KV 12
OHSAS 18001:2007
Assessment specification for occupational health & safety management systemsenvironmental management systems
Certificat OHSAS 18001:2007
- Shenzhen chengtiantai cable industry development Co.Ltd. ;
Certified through Guangdong quality Testing CTC Certification Co.Ltd.;
