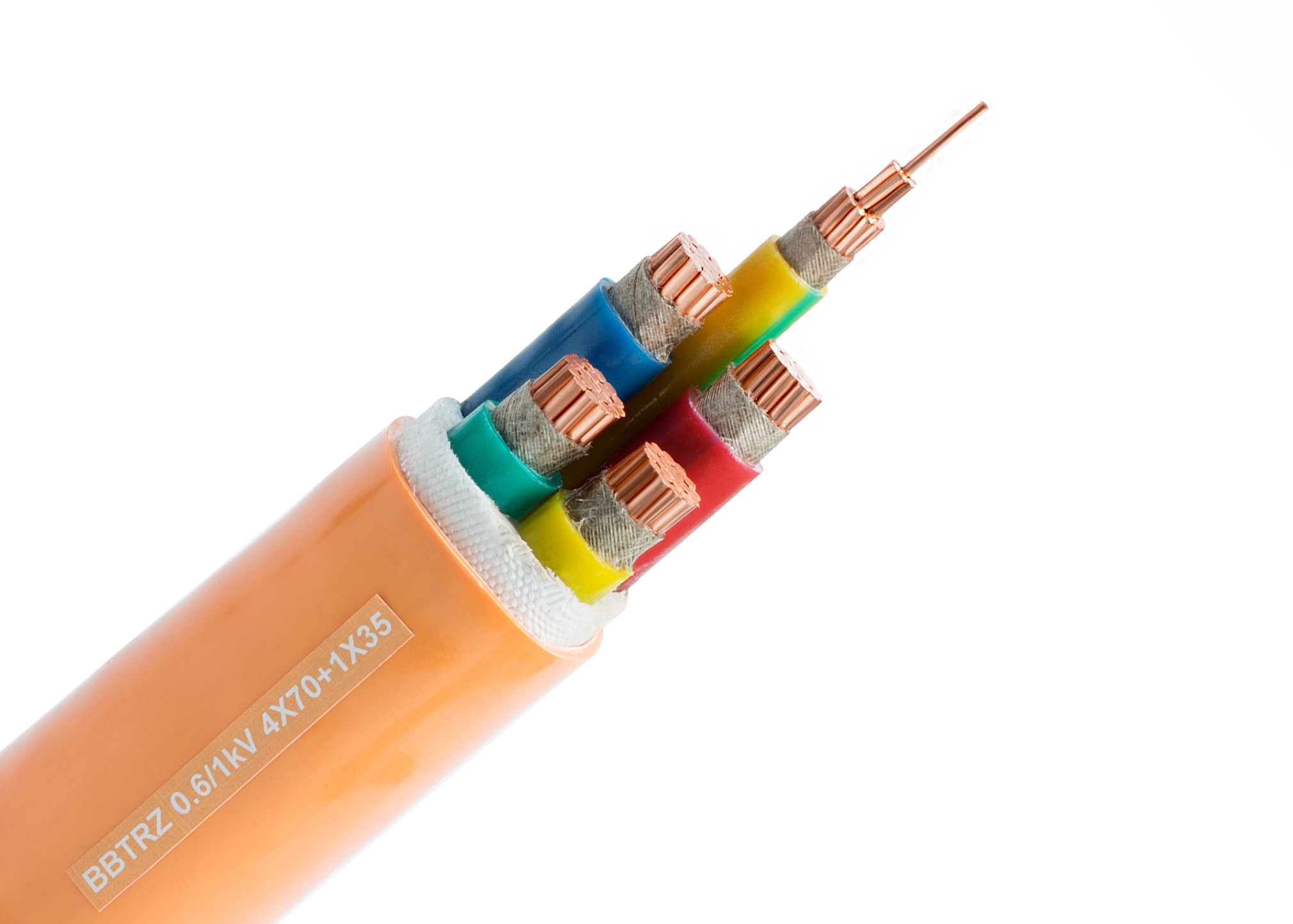

Mineral insulated Fire resistance cable
This type of cable is made up of single and multi-cores 600/1000V cables Service Temperature 90°C Emergency Overload Temperature 125°C Short-Circuit Temperature 250°C
The design, construction and testing are compliant with international standard IEC60502 and testing standard BS6387,with standing temperatures of 950~1000 °C for 90 minutes, which means they are capable of remaining in working order despite the most extreme fire conditions. Hence they are known as FIRE RESISTANT cables.
— Flame Retardant
— High Operating Temperatures
— LSOH Halogen-free
— Great Mechanical Strength
— Competitive Installed Cost
— Public Places
1.1 GB/T 2951-2008 1.2 GB/T 3048-2007 1.3 BS 6837 |
Conductor | Stranded bear copper |
Insulation (first layer) | mica tape, flame retardant | |
Insulation (second layer) | Halogen-free cross-linked polyethylene (XLPE) |
|
Binder tape | glass-fibre tape | |
Filler | Glass yarns | |
core wraping | glass-fibre tape as flame-protection | |
Inner Sheath | oxygen barrier layer | |
Sheath | Halogen-free thermoplastic polyolefin | |
Service Temperature | 90°C | |
Max. conductor temp. in service | 125°C | |
Short-Circuit Temperature | 250°C |
Nominal Cross section |
Outer Diameter approx. |
Weight of cable approx. | Voltage drop |
Mini bending radius |
|
Single phase | Three phase | ||||
mm2 | mm | kg/km | V/A.km | V/A.km | mm |
5 x 1.5 | 12.5 | 377.6 | 30.8 | 26.7 | 187.5 |
5 x 2.5 | 13.5 | 451.7 | 18.9 | 16.4 | 202.5 |
5 x 4 | 14.8 | 579.4 | 11.8 | 10.2 | 222.0 |
5 x 6 | 16.2 | 713.1 | 7.9 | 6.81 | 243.0 |
5 x 10 | 20.7 | 971.4 | 4.7 | 4.05 | 310.5 |
5 x 16 | 23.4 | 1,322.1 | 2.94 | 2.55 | 351.0 |
5 x 25 | 27.0 | 1,903.1 | 1.87 | 1.62 | 405.0 |
5 x 35 | 30.9 | 2,470.1 | 1.35 | 1.17 | 463.5 |
5 x 50 | 35.2 | 3,225.0 | 1.01 | 0.87 | 528.0 |
5 x 70 | 40.4 | 4,375.0 | 0.71 | 0.61 | 606.0 |
5 x 95 | 45.9 | 6,008.2 | 0.52 | 0.454 | 688.5 |
5 x 120 | 50.6 | 7,379.6 | 0.43 | 0.371 | 759.0 |
5 x 150 | 56.4 | 8,929.6 | 0.36 | 0.313 | 846.0 |
5 x 185 | 61.5 | 11,036.3 | 0.30 | 0.265 | 922.5 |
5 x 240 | 69.0 | 14,247.5 | 0.26 | 0.222 | 1035.0 |
5 x 300 | 77.1 | 17,609.6 | 0.23 | 0.197 | 1156.5 |
