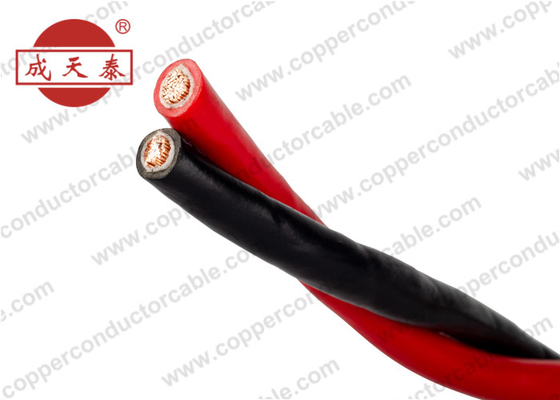

300 / 300V Twisted Cords With Flexible Copper Conductor Electrical Cable With Fire-resistant Layer
Product introduction:
Place of Origin: China Mainland
Brand Name: Shenzhen Chentiantai Cable
Certification: CE, CB, CCC
Model Number : N-RVS
Minimum Order : 100 Unit
Price : On Request
No. Of Conductor: Two Cores
Cable Shape: Round
Conductor: Flexible Conductor
Insulation: PVC Compound with Mica Layer
Sheath: PVC Compound
Application:
Exposed wiring in air or in raceway, wet or dry location and used for mobile electrical equipment
Product Specification:
Nominal cross sectional Area (mm²) |
Upper limit of average outer diameter (mm) |
Maximum DC resistance at 20 ℃ (Ω/km) |
Approximate carrying capacity (A) |
Reference weight (Kg/km) |
2x2.5 | 4.8*9.6 | 7.98 | 34.5 | 89.0 |
2x4 | 5.4*10.8 | 4.95 | 44.5 | 125.0 |
* The ampacity of cable will be directly affected by the lay-out methods and the ambient temperature.
Features:
Permissible operating temperature at conductor | +70℃ | |
Short circuit temperature (duration max. 5 s) | 160℃ | |
Minimum installation temperature | Should not be lower than 0 ℃ | |
Max. Conductor permissible tensile stress | 50 N/mm ² | |
Minimum bending radius | 15 × cable Ø |
Advantage:
It has the advantages of acid and alkali resistance, oil resistance, moisture-proof, mildew resistance, etc
Other Information:
Packaging Details: Coil in foil
Delivery Time: 15 working days
Payment Terms : L/C, T/T
