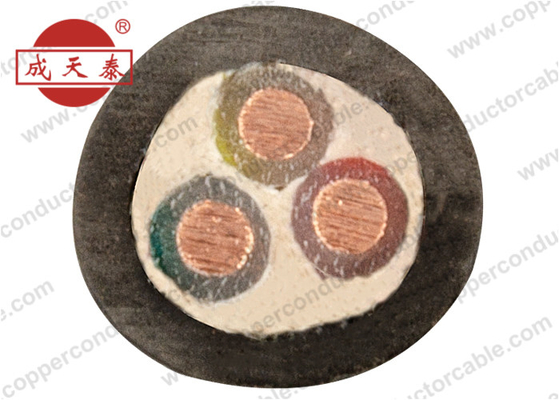

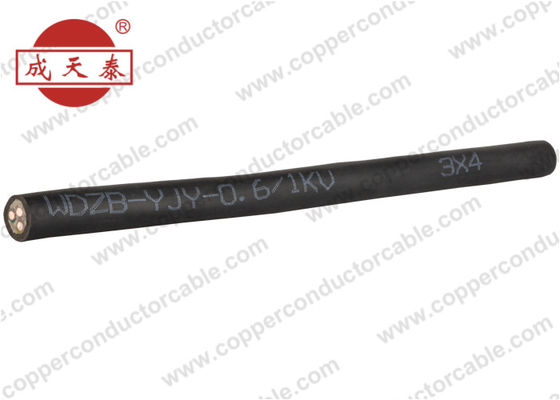

3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use

Negotiable
MOQ
Negotiable
Price
3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Low Smoke Zero Halogen Cable
Certification: IEC 60502
Feature: Flame Resistance
No. Of Conductor: 3 Core
Insulation: XLPE Insulated
Sheath: PVC Compound
Conductor Material: Bare Copper
Use: Indoors / Outdoors Use
High Light:

lshf cable

,

lszh power cables

Basic Infomation
Place of Origin: Guangdong,China(Mainland)
Brand Name: Shenzhen Chengtiantai
Certification: CE,UL& ROHS
Model Number: wdzbyjy 3 4
Payment & Shipping Terms
Packaging Details: coil in box or reel
Delivery Time: 7 / 15 working days
Payment Terms: L/C, T/T
Supply Ability: 50,000 m/day
Product Description

3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use



Low Smoke Zero Halogen Cable introduction:



Place of Origin: China Mainland

Brand Name: Shenzhen Chentiantai Cable

Certification: CE, CB, CCC

Model Number : YJV

Minimum Order : 500 m

Price : On Request

No. Of Conductor: 3 Core

Insulation: XLPE

Sheath: PVC Compound

Conductor Material: Bare Copper Class 2



Low Smoke Zero Halogen Cable Usage



It is suitable for subway, high-rise buildings, shopping malls, theaters, power stations, chemical factories, city squares and other public utilities with rated AC voltage of 450 / 750V and below, which have high requirements for flame retardant characteristics of cables.



Low Smoke Zero Halogen Cable Specification:



No.cores×

cross-sec.

Insulation

thickness

Nominal

Sheath

thickness

Outer Ø

approx.

Weight

approx.

Current

Ratings in air 30℃

Current

ratings buried 20℃

Maximum

DC resistance at 20℃

mm² mm mm mm Kg/km A A Ω/km
3×1.5 0.8 1.8 11 154 17 22 12.1
3×2.5 0.8 1.8 11.9 194 22 29 7.41
3×4.0 1.0 1.8 13.8 274 29 38 4.61



* The ampacity of cable will be directly affected by the lay-out methods and the ambient temperature.



Low Smoke Zero Halogen Cable Advantage:



The characteristics of the cable are halogen-free low smoke and low halogen low smoke. When a fire occurs, the spreading speed is slow, the smoke concentration is low, the visibility is high, and the release of harmful gases is small, which is convenient for evacuation. The combustion gas is less corrosive, which also avoids the damage to the instrument and equipment. The characteristics of low halogen and halogen-free make the cable material greatly improve its aging

resistance, UV resistance and other radiation resistance, thus prolonging the service life of the cable.


Assembly / Inner Covering

The inner coverings may be extruded or lapped. For cables with circular cores, except cables with more than five cores, a lapped inner covering shall be permitted only if the interstices between the cores are substantially filled. A suitable binder is permitted before application of an extruded inner covering. The material is compatible with the insulating material,The materials used for inner coverings and fillers shall be suitable for the operating temperature of the cable and compatible with the insulating material.For halogen free cables, the inner covering and fillers shall also be halogen free compound.
Armour

Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1, or double aluminum/steel tapes and copper/tinned copper wire can also be manufactured upon request.

Fire Performance of Cable Sheaths

Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.



CUSTOMER SERVICES Did you know?

We manufactures a comprehensive array of wires and cables to meet diverse market needs.



We look forward to assisting you in identifying the best products for your specific

application and to answer any questions you might have.



Head office: Chentiantai Industrial Park, Lisonglang community , Gongming office, Guangming district , Shenzhen P.R. China 518106





. Shenzhen Chengtiantai Cable operates certified management systems compliant with: ISO 9001:2008/ ISO14001:2004/OHSAS 18001 : 2007

. Cable production started 1983

. 35 years of cable manufacturing experience

·Sales in 2016 about 500 million USD

.100,000m² production area

.350 will-trained employees

.8 workshops

.1 R&D Center







Because we continuously improve our products, CTT Cable reserves the right to change specifications and availability without prior notice.
