XLPE Insulation Low Smoke Zero Halogen Cable 0.6/1kV 4 +1 Core Eco Friendly

Negotiable
MOQ
Negotiable
Price
XLPE Insulation Low Smoke Zero Halogen Cable 0.6/1kV 4 +1 Core Eco Friendly
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Low Smoke Zero Halogen Cable
Certification: CE, CB, CCC
Model Number: YJV

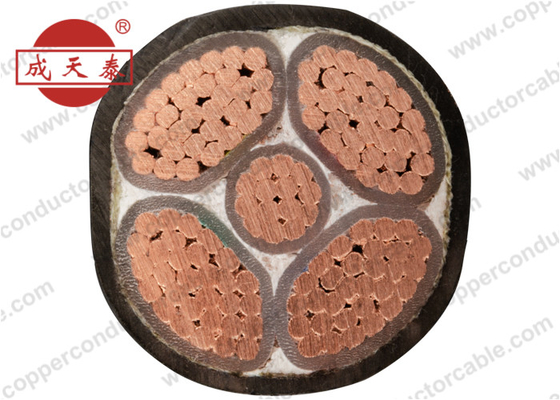

No. Of Conductor: 4+1Core
Insulation: XLPE
Sheath: PVC Compound
Conductor Material: Bare Copper Class 2
Feature: Eco Friendly
High Light:

lshf cable

,

lszh power cables

Basic Infomation
Place of Origin: Guangdong,China(Mainland)
Brand Name: Shenzhen Chengtiantai
Certification: CE,UL& ROHS

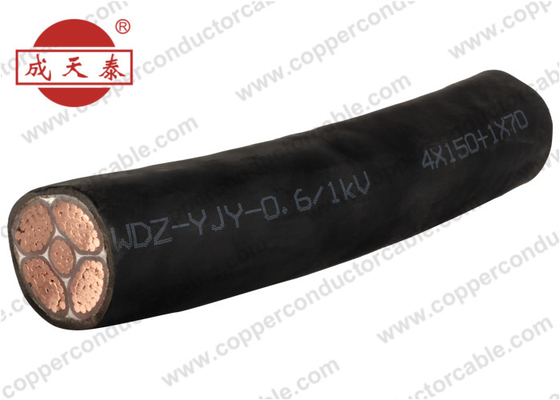

Model Number: wdz YJY 4 150+1 70
Payment & Shipping Terms
Packaging Details: coil in box or reel
Delivery Time: 7 / 15 working days
Payment Terms: L/C, T/T
Supply Ability: 50,000 m/day
Product Description

XLPE Insulation Low Smoke Zero Halogen Cable 0.6/1kV 4 +1 Core Eco Friendly



Low Smoke Zero Halogen Cable introduction:



Place of Origin: China Mainland

Brand Name: Shenzhen Chentiantai Cable

Certification: CE, CB, CCC

Model Number : YJV

Minimum Order : 500 m

Price : On Request

No. Of Conductor: 4+1Core

Insulation: XLPE

Sheath: PVC Compound

Conductor Material: Bare Copper Class 2



Low Smoke Zero Halogen Cable Application



It is suitable for subway, high-rise buildings, shopping malls, theaters, power stations, chemical factories, city squares and other public utilities with rated AC voltage of 450 / 750V and below, which have high requirements for flame retardant characteristics of cables.



Low Smoke Zero Halogen Cable Specification:



No. Cores *cross -sec.

Insulation

thickness

Nominal

Sheath

thickness

Outer Ø approx.

Weight

Approx.

Current

ratings

in air 30℃

Current

ratings

Buried 20℃

Phase Neutral
mm² mm mm mm kg / km A A Ω/km
4×4+1×2.5 0.7 0.7 1.8 14.1 320 38 48
4×6+1×4.0 0.7 0.7 1.8 15.6 427 48 60
4×10+1×6.0 0.7 0.7 1.8 18.1 636 66 81
4×16+1×10 0.7 0.7 1.8 20.8 941 88 107
4×25+1×16 0.9 0.7 1.8 24.9 1441 118 137
4×35+1×16 0.9 0.7 1.8 27.1 1853 144 165

4×50+

1×25

1.0 0.9 1.9 31.6 2616 177 196

4×70+

1×35

1.1 0.9 2.1 36.5 3578 227 244

4×95+

1×50

1.1 1.0 2.2 41.6 4843 325 288

4×120+

1×70

1.2 1.1 2.4 46.3 6110 375 329

4×150+

1×70

1.4 1.1 2.5 51.2 7421 433 369



* The ampacity of cable will be directly affected by the lay-out methods and the ambient temperature.



Low Smoke Zero Halogen Cable Advantage:



The characteristics of the cable are halogen-free low smoke and low halogen low smoke. When a fire occurs, the spreading speed is slow, the smoke concentration is low, the visibility is high, and the release of harmful gases is small, which is convenient for evacuation. The combustion gas is less corrosive, which also avoids the damage to the instrument and equipment. The characteristics of low halogen and halogen-free make the cable material greatly improve its aging

resistance, UV resistance and other radiation resistance, thus prolonging the service life of the cable.



Other Information:



Packaging Details: Coil in foil

Delivery Time: 15 working days

Payment Terms : L/C, T/T


Assembly / Inner Covering

The inner coverings may be extruded or lapped. For cables with circular cores, except cables with more than five cores, a lapped inner covering shall be permitted only if the interstices between the cores are substantially filled. A suitable binder is permitted before application of an extruded inner covering. The material is compatible with the insulating material,The materials used for inner coverings and fillers shall be suitable for the operating temperature of the cable and compatible with the insulating material.For halogen free cables, the inner covering and fillers shall also be halogen free compound.
Armour

Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1, or double aluminum/steel tapes and copper/tinned copper wire can also be manufactured upon request.

Fire Performance of Cable Sheaths

Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.
