Multi Contudtor PVC Insulated Power Cable 3*70 Sq Mm Cross Section IEC 60502-1

500 m
MOQ
On Request
Price
Multi Contudtor PVC Insulated Power Cable 3*70 Sq Mm Cross Section IEC 60502-1
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 0.6 / 1 KV
Conductor: Bare Copper
No. Of Cores: 3 Cores
Insulation: PVC
Armoured Type: Unarmoured
Sheath: PVC Compound
High Light:

pvc copper cable

,

pvc multicore cable

Basic Infomation
Place of Origin: Shenzhen, Mainland China
Brand Name: Chengtiantai Cable
Certification: CE, CB
Model Number: VV
Payment & Shipping Terms
Packaging Details: Steel Wooden Drum
Delivery Time: 15 working days after payments
Payment Terms: L/C, T/T
Supply Ability: 20 km / day
Product Description

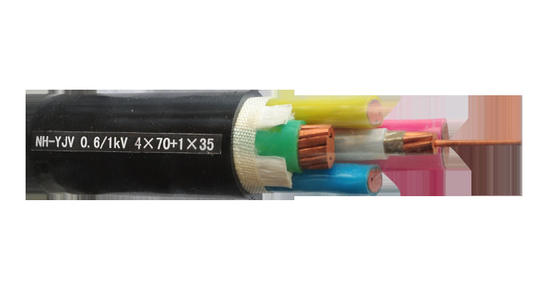

3*70 sq mm PVC Multi-core cable to IEC 60502-1 Cu-conductor, PVC Insulated and sheathed



0.6/1kV, PVC Insulated Cables according to IEC 60502-1 (unarmoured)





Power cables for energy supply are installed in open air, in underground, indoors, in cable ducts, power stations, residental connections and street lighting as well as in subscriber networks, where mechanical damages are not be expected.





Quick details

-------------------------------------------------------

Nominal cross section:3X70mm2

Overall diameter Ø approx:27.4mm

Net weight approx: 2264 kg/km

Conductor DC resistant at 20°C:0.27Ω/km

Electrical characteristics

-------------------------------------------------------

Rated voltage Uo/U (Um): 600 / 1000 V

Maximum current rating air 30°C:213 A

Maximum current rating buried 20°C: 242 A

Maximum DC resistance, conductor 20°C:0.27Ω / km

Test voltage: 4000 V

Dimensional characteristics

-------------------------------------------------------

Nominal cross-section: 70 mm2

No of Conductors: single 3 Core

Insulation thickness: 1.1mm

sheath thickness nominal value:1.9 mm

Max overall diameter Ø: 27.4 mm

Approximate weight:2264 kg/km



Usage characteristics

-------------------------------------------------------

Maximum operating temperature: 90 °C

Short circuit temperature: +250°C (short circuit duration max. 5 s)

during installation up to -20°C

Temperature range: - 20 to + 90 °C

Minimum bending radius:15 x cable Ø



Standards

-------------------------------------------------------

International: IEC 60502-1
National:GB/ T 12706.1-2008

Construction characteristics

-------------------------------------------------------
1. Conductor
– Bare copper conductor, Class 2 to IEC 60228

–​ For smaller sizes, a solid round conductor, Class 1
2. Insulation: XLPE Compound

3. Filler: PP filler
4. Outer Sheath :PVC Compound
5. Sheath colour :Black

Note:

when required for a particular application, other colors are available.

RECOMMENDED ORDERING PARAMETERS

-------------------------------------------------------

For prompt quotation / supplies please make sure your inquiries and your orders are
securing the following data :

1 - International or Special Standard. (Alternatively, the precise usage of the cable.)
2 - Rated voltage.
3 - Copper or Aluminium conductors.
4 - Size of each conductor.
5 - Insulation material : XLPE or others.
6 - Number and identification of conductors.
7 - Other requirements.
8 - Packing.
9 - Required delivery time.
10 - Required validity.
