3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use

500 m
MOQ
On Request
Price
3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use
Features Gallery Product Description Request A Quote
Features
Specifications
Rate Voltage: 06/1 KV
Conductor: Bear Copper Class 2
No. Of Cores: 3 Core
Fire Barrier: Mica Tape
Package: Steel Wooden Drum
Insualtion: XLPE
High Light:

low smoke halogen free cable

,

lszh power cables

Basic Infomation
Place of Origin: Mainland, China
Brand Name: Chengtiantai Cable
Certification: CB,CE
Model Number: WDZ-YJV
Payment & Shipping Terms
Packaging Details: steel-wooden Drum
Delivery Time: Within 15 working days after payment
Payment Terms: L/C, T/T
Product Description

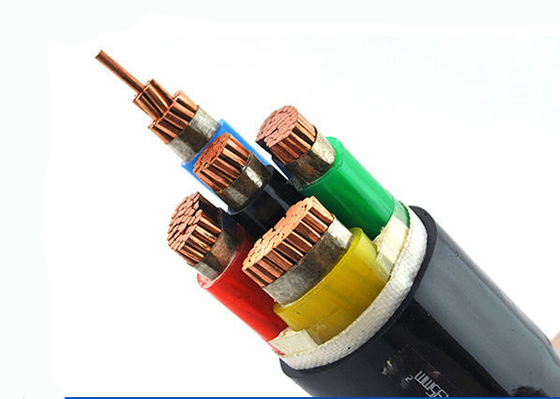

Fire resistant cable 3 core 0.6/1 kV Cu-conductor, Mica-tape, XLPE Insulated, LSZH sheathed

Applications

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
Construction

1. Conductors

The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium alloy, or of Class 5 of plain or metal-coated copper in accordance with IEC 60228.
2. Insulation

XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.
3. Assembly / Inner Covering

The inner coverings may be extruded or lapped. For cables with circular cores, except cables with more than five cores, a lapped inner covering shall be permitted only if the interstices between the cores are substantially filled. A suitable binder is permitted before application of an extruded inner covering. The material is compatible with the insulating material,The materials used for inner coverings and fillers shall be suitable for the operating temperature of the cable and compatible with the insulating material.For halogen free cables, the inner covering and fillers shall also be halogen free compound.
4. Armour

Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1, or double aluminum/steel tapes and copper/tinned copper wire can also be manufactured upon request.
5. Outer Sheath

Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available on request.
6. Fire Performance of Cable Sheaths

Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.

Physical and Electrical Characteristics:



No.cores x
cross-sec.
Insulation
thickness

Nominal

Sheath
thickness

Outer Ø
approx.
weight
approx.
Current ratings in air 30℃ Current ratings buried 20℃ maximum DC resistance at 20℃
mm² mm mm mm kg / km A A Ω/km
3×1.5 0.8 1.8 11 154 17 22 12.1
3×2.5 0.8 1.8 11.9 194 22 29 7.41
3×4.0 1.0 1.8 13.8 274 29 38 4.61
3×6.0 1.0 1.8 14.9 348 37 47 3.08
3×10 1.0 1.8 17.6 529 52 65 1.83
3×16 1.0 1.8 19.9 740 68 85 1.15
3×25 1.2 1.8 23.7 1058 91 110 0.73
3×35 1.2 1.8 26.1 1382 112 134 0.52
3×50 1.4 1.8 26.4 1760 133 159 0.39
3×70 1.4 2.0 29.8 2364 171 199 0.27
3×95 1.6 2.1 33.8 3158 209 237 0.19
3×120 1.6 2.2 36.7 3921 242 271 0.15
3×150 1.8 2.3 40.2 4868 282 305 0.12
3×185 2.0 2.5 45.6 5952 329 346 0.10
3×240 2.2 2.7 51.7 7713 392 400 0.08
3×300 2.4 2.9 56.1 10004 450 462 0.06







INSTALLATION METHOD DETAILS



3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 0   3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 1   3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 2   3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 3
A1 – Thermally insolated wall (Single-core) A2 – Thermally insolated wall (multi-core) B1 – Apparent electroduct (Single-core) B2 – Apparent electroduct (multi-core)

3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 4   3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 5   3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 6   3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 7
B1 – Electroduct in brickwork (Single-core)   B1 – Electroduct in brickwork (multi-core)   C – On the wall    C – On the ceiling

3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 8   3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 9   3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 10   3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 11
C – Non-perforated tray   F – Perforated tray (Single-core)   F – Perforated tray (multi-core)   F –Suspended (Single-core)

3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 12   3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 13   3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 14   3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 15
E – Suspended (multi-core)   B2 – Construction space   B2 – Construction space   B1 – Electroduct (Single-core)

3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 16   3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 17   3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 18   3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 19
B2 – Electroduct (Multi-core)   B2 – Closed raceway embedded in floor (multi-core)   B2 – Closed raceway embedded in floor (multi-core)   B1 – Ventilated raceway embedded in floor

3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 20   3 Core Low Smoke Zero Halogen Cable Flame Resistance Indoors / Outdoors Use 21
C – Embedded in the brickwork   D – Buried in additional mechanical protection





Cable Drum Data



CABLE DRUMS D1=Flange Diameter(mm) W=Useful Width (mm) D2=Barrel Diameter(mm)
Low Voltage Power Cable 0.6/1 kV 3+2 Core XLPE Insulated, PVC Sheathed, Unarmoured & Armoured to IEC 60502 1000 700 500
1100 700 550
1200 700 600
1400 750 710
1600 900 900
1800 1120 1000
2400 1150 1300





  RECOMMENDED ORDERING PARAMETERS

   CONTACT

For prompt quotation / supplies please make sure your inquiries and your orders are
securing the following data :

1 - International or Special Standard. (Alternatively, the precise usage of the cable.)
2 - Rated voltage.
3 - Copper or Aluminium conductors.
4 - Size of each conductor.
5 - Insulation material : XLPE or others.
6 - Number and identification of conductors.
7 - Other requirements.
8 - Packing.
9 - Required delivery time.
10 - Required validity.

If this all seems a litle too technical for you, then why not get in touch with us.



We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.



Tel:+86 755 6114 5028
Fax:+86 755 61137976
E-mail : cttcable@hotmail.com
Head office:chengtiantai Industrial Park, Lisonglang community, Gongming office, Guangming district, Shenzhen P.R. China 518106



  WARRANTY



For a period commencing on the date shipped the Goods to Buyer and continuing for a period of 12 months thereafter.
