Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV

500 m
MOQ
On Request
Price
Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 3.6/6 KV
Insulation: XLPE
No. Of Conductor: 3 Core
Sheath: PVC Compound
Conductor Material: Bare Copper Class 2
Manufacturer: Shenzhen Chengtiantai
Highlight:

lshf cable

,

lszh power cables

,

power distribution lszh cables

Basic Infomation
Place of Origin: Shenzhen, China (mainland)
Brand Name: Chengtiantai
Certification: CE, ISO, IEC
Model Number: YJV22-3.6/6-3C
Payment & Shipping Terms
Packaging Details: Iron wooden drum or as required
Delivery Time: 7/15 working days
Payment Terms: L/C, T/T
Supply Ability: 18,000 m per month
Product Description

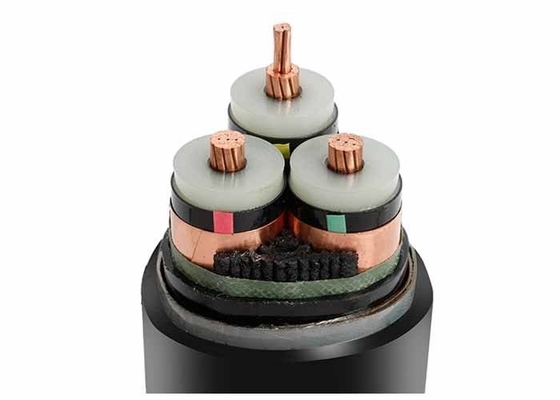

3,6/ 6 kV 3 core XLPE Insulated LSZH  SHEATHED Steel Tape Armoured 3 core



Annealed Stranded Copper Conductor,XLPE Insulation,Copper Tape Screened, Core laid up, PVC Innersheathed, Armoured and PVC outer sheathed power cable.



The 3 cores cables are designed for distribution of electrical power with nominal voltage Uo/ U:3.6/6 KV and frequency 50Hz.



Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 0

  CONSTRUCTION:

1. CONDUCTOR

– Bare copper class 2 to IEC 60228, round, multiwire stranded and compact

2. CONDUCTOR SCREEN

– Inner semi-conducting coating

3. INSULATION

– Core insulation of cross-linked polyethylene (XLPE)

4. INSULATION SCREEN

– Outer conductive layer extruded and per-manently welded with the core insulation

Semi-conducting type
– Over the outer semi-conducting layer, a semiconducting tape must be used.

5. METAL SCREEN

– copper tapes helically with a minimum thickness of 0,1 mm.

6. FILLER

– PP filler

7. WRAPPING TAPE

INNER SHEATH

– LSZH Compound

ARMOR WITH

Galvanized Double Steel Tape minimum thickness of 0,1 mm

8. SHEATH

– Outer sheath of LSZH compound

Core identification:

colored tapes under screen.

Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 1

  STANDER

International:IEC60502-2

National:GB/T 12706.1-2008

  TECHNICAL DATA

Temperature range
– during installation up to -5°C



Operating temperature
– max. +90°C



Short circuit temperature
+250°C (short circuit duration max. 5 s)



Minimum bending radius
– 15 x cable Ø


Nominal voltage
– U0/U 3.6/6 kV

Operating voltage, 50 Hz
– for 3.6/6 kV = max. 7.2 kV

Test voltage(V/5 min)
– for3.6/6 kV = 12 kV

Breaking strength:

– min. 200%
Tensile strength:

– min. 12,5 N/mm2



  3.6/ 6 kV XLPE Insulated, Copper conductor, single core, screened, PVC sheathed



No.cores x
cross-sec.
Insulation
thickness
Inner Sheath
thickness
Sheath
thickness
Outer Ø
approx.
weight
approx.
Current ratings in air 30℃ Current ratings buried 20℃
mm² mm mm mm mm kg / km A A
3 x 35 2.5 1.3 2.3 43.5 2993 144 181
3 x 50 2.5 1.3 2.4 46.5 3601 172 215
3 x 70 2.5 1.4 2.5 49.3 4368 213 263
3 x 95 2.5 1.4 2.6 54.3 5348 261 315
3 x 120 2.5 1.5 2.8 57.9 6303 301 358
3 x 150 2.5 1.6 2.9 61.7 7405 341 402
3 x 185  2.5 1.6 3.0 65.4 8646 392 456
3 x 240 2.6 1.7 3.2 70.7 10573 459 527
3 x 300 2.8 1.8 3.4 77.3 12779 532 599
3 x 400 3.0 2.0 3.7 88.1 17225 624 685



*Dimensions and specifications may be changed without prior notice.



  MEDIUM VOLTAGE CABLE TESTING



Routine tests: Sample tests: Type tests:
These non-destructive tests are normally carried out on all lengths manufactured.
- Conductor resistivity
- Spark test on oversheath
- Voltage tests on sheath
- D.C. voltage test on oversheath
These potentially destructive tests are normally carried out on every production run.
- Examination of conductor and dimensions
- Hot set test for XLPE insulation
- Insulation and oversheath thickness
- Four hour voltage test
These destructive tests are normally carried out in addition to the above tests on commencement of a particular cable supply to validate its design.
- Electrical type tests including bending and heat cycle
- Non-electrical type tests including mechanical properties after ageing and tests under fire conditions.



  PACKING AND SHIPPING



Packing: steel wooden drum, other as required ; standard delivery length is 300 m



Packaging details :

Delivery :

Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 2 Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 3

Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 4

Steel Wooden Drums Cable Drum In container  shipped in 15 days after payment



  Cable Drum Data



CABLE DRUMS D1=Flange Diameter(mm) W=Useful Width (mm) D2=Barrel Diameter(mm)
Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 5 1000 700 500
1100 700 550
1200 700 600
1400 750 710
1600 900 900
1800 1120 1000
2400 1150 1300





  Delivery Port:



Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 6 Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 7 Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 8
Port of Shenzhen  Port of Hongkong  Port of Guangzhou





  Our production in numbers



Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 9

● Cable production started 1983
35 years of cable manufacturing experience

● Sales in 2016 about 500 million USD

100,000 m2 Production area
350 Will-trained employees
● Exported more than 22 countries
2 Manufacturing plant
1 R&D Center

200 Sets Of Testing Equipment

100 Testing Items
8 workshop
40 wire drawing machines
10 bunching machines
28 Extruder system
42 stranding machines
10 Braiding machines


  Shenzhen chengtiantai cable operates certified management systems compliant with:

  Certificat Information
Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 10
ISO 9001:2008
Quality management systems



Certificat ISO 9001:2008
- Shenzhen chengtiantai cable industry development Co.Ltd. ;
Certified through Guangdong quality Testing CTC Certification Co.Ltd.;
Valid until 13 January 2019
Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 11
ISO 14001:2004
Environmental management systems

Certificat ISO 14001:2004

- Shenzhen chengtiantai cable industry development Co.Ltd. ;

Certified through Guangdong quality Testing CTC Certification Co.Ltd.;

Valid until 13 January 2019

Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 12
OHSAS 18001:2007
Assessment specification for occupational health & safety management systemsenvironmental management systems
Certificat OHSAS 18001:2007
- Shenzhen chengtiantai cable industry development Co.Ltd. ;
Certified through Guangdong quality Testing CTC Certification Co.Ltd.;
Valid until 13 January 2019



  Manufacturing Process Of Medium Voltage Power Cable



Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 13 Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 14 Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 15
1. copper rod 2. wire drawing 3. wire stranding
Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 16 Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 17 Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 18
4.Triple Extrusion Insulation 5.Screening Process 6. outer covering Process
Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 19 Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 20 Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV 21
7. Sheath Marking 8. Packing 9. Partial discharge Inspection
