CCTV Cable RG59/U Type Siamese RG59+2*0.75
|

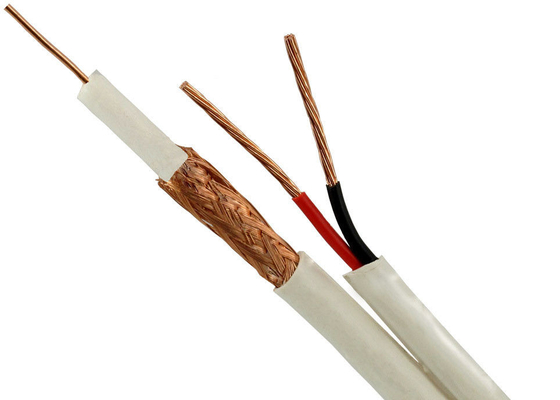

Siamese Construction:This cable contains 1 coax unit plus 1 pair 0.75 mm2 Unshielded
Product Description
Coax: Solid bare copper conductor, foam polyolefin insulation, Al-Mg braid shield. Black PVC jacket
Pair: Stranded bare copper conductor, PVC insulation, Black PVC jacket. Color coded: Black & Red.
Applications:
• CCTV • Security Baseband Video |
|
|
Construction Parameters: |
||
|
Inner Conductor |
0.032"/0.81mm/20AWG |
Bare Copper |
|
Dielectric |
0.144"/3.66±0.05mm |
Foamed Polyethylene |
|
First Shield |
Nom. 0.161"/4.10mm |
Braiding |
|
Strands |
0.005"/0.12mm |
Al-Mg alloy |
|
% Coverage |
95 nom |
|
|
Jacket |
0.236"/6.00±0.1mm |
PVC (ETL/UL CM) |
|
Power Wire Conductor |
2-18 AWG 16×0.001"/16×0.254mm |
bear copper or Copper Clad Aluminum |
|
Power wire Diameter of insulation |
0.075"/1.90mm |
PVC (ETL/UL CM) |
|
Power Wire Color Code |
Red,Black |
|
|
Jacket |
0.199"/5.05±0.1mm |
PVC (ETL/UL CM) |
|
* 1 Pair of wire twisted |
|
|
|
Application |
For Use in Intermediate CCTV |
Run Lengths |
|
Limited Length |
Typical run length up to |
750 feet |
|
Frequency(MHZ) |
1 |
10 |
50 |
100 |
200 |
400 |
700 |
900 |
1000 |
|
Attenuation (dB/100m) |
0.98 |
2.76 |
6.17 |
8.89 |
12.92 |
19.19 |
27.62 |
32.24 |
33.46 |
|
Attenuation (dB/100ft) |
0.30 |
0.84 |
1.88 |
2.71 |
3.94 |
5.85 |
8.42 |
9.83 |
10.20 |
|
Impedance |
Capacitance |
Velocity of Propagation |
frequency range (max.) |
|
75±3Ω |
56 pF/m |
80 % |
3 GHz |
|
Frequency(MHZ) |
30-300 MHz |
300-600 MHz |
600-900 MHz |
|
Return Loss |
>25dB |
>24dB |
>20dB |

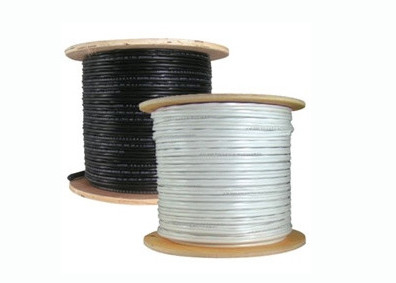

packaging:
please concact Customer service for packaging and color options
|
