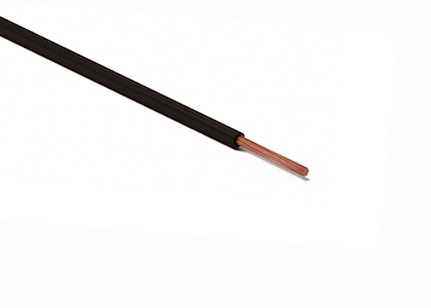

H05V2-K single-core non-sheathed cable for internal wiring 1 x 0.75 mm²
Quick details:
| Product category: | H05V2-K |
| Number of cores: | 1 |
| Nominal cross section: | 1 x 0.75 mm² |
| Overall diameter approx: | 2.8 mm |
| Net weight approx: | 12 kg / km |
| Standard delivery length: | 100 m |
| Conductor DC resistant at 20°C: | 24.5 Ohms / km |
| Current carrying capacity: | 17 A |
Description
|
Applications:
Certificates, approvals:
Color options: red, yellow, blue, black, green, green/yellow (other colors can be supplied on request) |
Characteristics
|
Construction characteristics |
|
| Conductor material | bare copper class 5 |
| Insulation | Lead-free heat resistant PVC compound |
|
Dimensional characteristics |
|
| Nominal cross-section | 0.75 mm2 |
| Outer Ø min. - max. | 2.2 - 2.7 mm |
| Approximate weight | 12 kg / km |
|
Electrical characteristics |
|
| Rated voltage Uo/U (Um) | 300 / 500 V |
| Maximum current rating air 25°C | 20 A |
| Maximum DC resistance, conductor 20°C | 24.5 Ω / km |
| Test voltage | 2000 V |
|
Usage characteristics |
|
| Maximum operating temperature | 90 °C |
| Short-circuit max conductor temperature(duration up to 5 S) | 160 °C |
| Temperature range | - 5 to + 90 °C |
|
Installation conditions |
|
| Installation temperature | 5 °C |
| Minimum bending radius | 4 x cable diameter |
| Recommended maximum tensile stress | 50 x A N / mm² |
Note:
|
|
