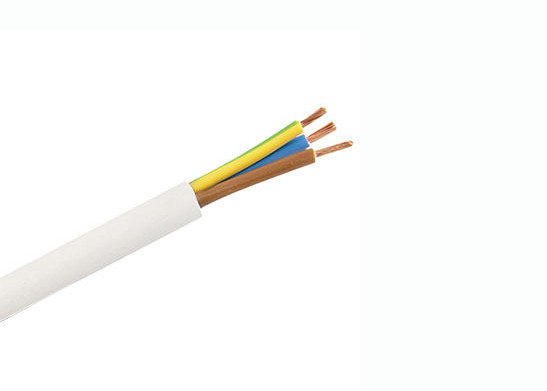

PVC insulated multi-core cables with flexible conductor H05VV-F 3 x 1.0 mm²
Quick details
| Product category: | H05VV-F |
| Austrian type: | YMM |
| Number of cores: | 3 |
| Nominal cross section: | 3 x 1.0 mm² |
| Overall diameter approx: | 6.3 - 8.0 mm |
| Net weight approx: | 75 kg / km |
| Standard delivery length: | 100 m |
| Conductor DC resistant at 20°C: | 19.5 Ohms / km |
| Current carrying capacity: | 9.5 A |
Description
|
Applications: For household appliances working under humid and medium mechanical stress. Installation:
Standards/references:
Certificates, approvals:
Color options: red, yellow, blue, black, green, green/yellow (other colors can be supplied on request) |
Characteristics
|
Construction characteristics |
|
| Conductor material | Fine wire according to IEC 60228 class 5 |
| Insulation | polyvinyl chloride (PVC) |
| Outer Sheath | polyvinyl chloride (PVC) |
|
Dimensional characteristics |
|
| Number of cores | 3 |
| Conductor cross-section | 1.0 mm2 |
| Outer diameter Ø min. - max. | 6.3 - 8.0 mm |
| Approximate weight | 75 kg / km |
|
Electrical characteristics |
|
| Rated voltage Uo/U (Um) | 300 / 500V |
| Maximum current rating air 25°C | 16 A |
| Maximum DC resistance, conductor 20°C | 19.5 Ω / km |
| Test voltage | 2000 V |
|
Usage characteristics |
|
| Maximum operating temperature | 70 °C |
| Short-circuit max conductor temperature(duration up to 5 S) | 160 °C |
| Temperature range | - 5 to + 70 °C |
|
Installation conditions |
|
| Installation temperature | 5 °C |
| Minimum bending radius | 4 x cable diameter |
| Recommended maximum tensile stress | 50 N / mm² |
Note:
|
|
