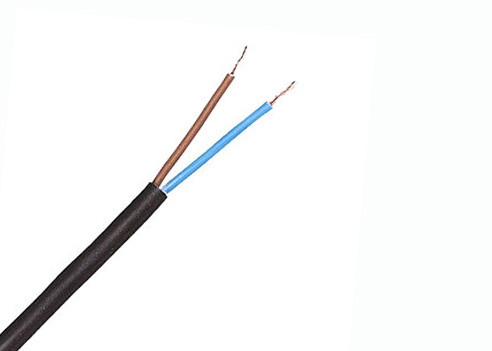

2 Core 1.5 Sq Mm Cable , Flexible Electrical Wire 20 A Current Carrying Capacity

100 Unit
MOQ
On Request
Price
2 Core 1.5 Sq Mm Cable , Flexible Electrical Wire 20 A Current Carrying Capacity
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 300/500 V
Conductor: Copper Conductor
Conductor Type: Fine Wire
Insulated: PVC Compound
Temperature Rating: - 5 ℃ ~ + 70 ℃
Minimum Bending Radius: 4 × Outer Diameter
Highlight:

copper electrical wire

,

stranded conductor cable

Basic Infomation
Place of Origin: China mainland
Brand Name: Shenzhen chengtiantai cable
Certification: CE, CB, Rhos, CCC
Model Number: H05VV-F
Payment & Shipping Terms
Packaging Details: Coil in foil / drum
Delivery Time: 15 working days after payment
Payment Terms: L/C, T/T
Supply Ability: 10 km / day
Product Description





PVC insulated multi-core cables with flexible conductor H05VV-F 2 x 1.5 mm²







  Quick details




Product category: H05VV-F
Austrian type: YMM
Number of cores: 2
Nominal cross section: 2 x 1.5 mm²
Overall diameter approx: 6.8 - 8.6 mm
Net weight approx: 85 kg / km
Standard delivery length: 100 m
Conductor DC resistant at 20°C: 13.3 Ohms / km
Current carrying capacity: 20 A







  Description





Applications:

For household appliances working under humid and medium mechanical stress.

Installation:

  • In industries
  • In houses
  • Suitable for installation in electrical installation pipes or similar closed systems - surface or flush mount

Standards/references:

  • International: IEC 60227
  • National: GB/T5023-2008

Certificates, approvals:

  • CE
  • CCC (China Compulsory Certificate, CCC)
  • All substances of the cable meet the requirements of RoHS Directive

Color options:

red, yellow, blue, black, green, green/yellow (other colors can be supplied on request)





  Characteristics





  Construction characteristics

Conductor material Fine wire according to IEC 60228 class 5
Insulation polyvinyl chloride (PVC)
Outer Sheath polyvinyl chloride (PVC)

  Dimensional characteristics

Number of cores 2
Conductor cross-section 1.5 mm2
Outer diameter Ø min. - max. 6.8 - 8.6 mm
Approximate weight 85 kg / km

  Electrical characteristics

Rated voltage Uo/U (Um) 300 / 500 V
Maximum current rating air 25°C 20 A
Maximum DC resistance, conductor 20°C 13.3 Ω / km
Test voltage 2000 V

  Usage characteristics

Maximum operating temperature 70 °C
Short-circuit max conductor temperature(duration up to 5 S) 160 °C
Temperature range - 5 to + 70 °C

  Installation conditions

Installation temperature 5 °C
Minimum bending radius 4 x cable diameter
Recommended maximum tensile stress 50 N / mm²
Note:
  • Photographs are not to scale and do not represent detailed images of the respective products
  • Prices are net prices without VAT and surcharges
  • Sale to business customers only
  • Information in this document is subject to change without notice
