Description:

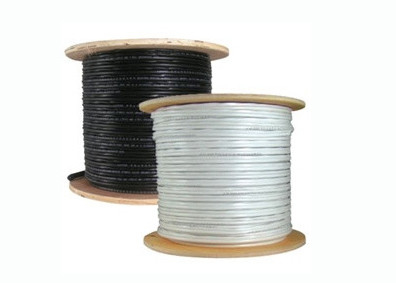

CATV RG11 Quad-Shield Coaxial Cable with 60% and 40% AL Braid PVC with Messenger is a specific type of CATV coaxial cable , RG11Produced by Chengtiantai cable is perfect for digital Cable and Satalite, Attenas, and communication systems. RG11 has a characteristic impedance of 75 ohms.
RG11 is packed in 500FT/1000FT plastic/wooden spool, and will be layed on pallet to protect the spool and easier carry.
Applications:
Suitable for RF Signal Transmission ■ CATV ■ MATV ■ CCTV ■ Local Area Network ■ Digital Video ■ Antennas |
| CATV RG11 Quad-Shield Coaxial Cable with 60% and 40% AL Braid PVC with Messenger | ||

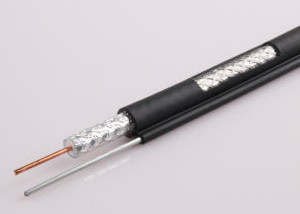

| Inner Conductor | 0.064"/1.63mm/14AWG | Copper Clad Steel |
| Dielectric | 0.280"/7.11mm | Foamed PE |
| Shield 1 | 0.287"/7.29mm | Bonded Aluminum Polyproylene |
| Shield 2 | 60% coverage | Aluminum braid wire |
| Shield 3 | (Non-bonded) | Aluminum Laminated Tape |
| Shield 4 | 40% coverage | Aluminum braid wire |
| Jacket | 0.407"±0.006"/10.34±0.15mm | PVC |
| Jacket Thickness | 0.037"/0.94mm | |
| Messenger | 0.083"/2.11mm | |
| Inner Conductor Resistance | The Max. at 20℃ shall be < 87 Ω/km < 26.53 Ω/1000ft | |
| Capacitance | 52 ±3 pF/m 15.85 ±1 pF/ft | |
| Impedance | 75 ± 3 Ω | |
| Return loss | between 5 and 1000MHz: > 22dB | |
| Velocity of Propagation | 0.85 | |
| Sparker Test (VAC) | 4 | |
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.38 | 1.25 |
| 55 | 0.96 | 3.15 |
| 83 | 1.18 | 3.87 |
| 187 | 1.75 | 5.74 |
| 211 | 1.90 | 6.23 |
| 250 | 2.05 | 6.72 |
| 300 | 2.25 | 7.38 |
| 350 | 2.42 | 7.94 |
| 400 | 2.60 | 8.53 |
| 450 | 2.75 | 9.02 |
| 500 | 2.90 | 9.51 |
| 550 | 3.04 | 9.97 |
| 600 | 3.18 | 10.43 |
| 750 | 3.65 | 11.97 |
| 865 | 3.98 | 13.05 |
| 1000 | 4.35 | 14.27 |
| Cable bend radius | 10 times the cable diameter | |
| Operating Temp Range (PVC) | -20 ℃ to 60 ℃ | |
| Cable diamensions | 0.41''±0.006''/10.39±0.15 mm PVC | |
| Minimum Breaking Strength | 487lbs./221kg | |
| Package | 500FT/Pull Box, 1000FT/Wooden Spool, Pallet | |
| Delivery time | Normally 25 days after received the deposit. | |
