Description
– High-Performance Data Communications Cable
– Suitable for High-Speed Data Applications,Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD/CDDI
– Gel Filled Flooded Core Designed for Direct Burial Installations
– UV Resistant for above ground applications
– LDPE UV Resistant Jacket for Outdoor Use with Flooded Gel Core
FEATURE
– Category 6 Rated to 550MHz

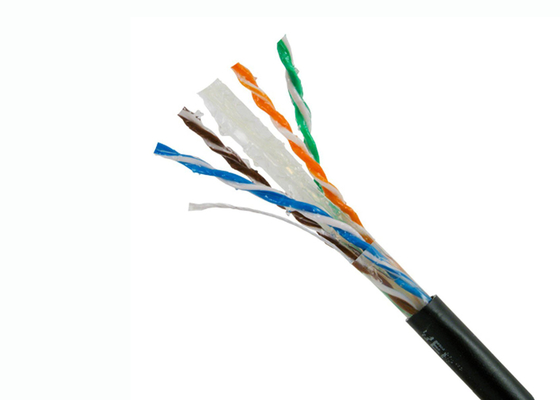

– UTP (Unshielded) Twisted Pair
– 4 Pair Easily Identified Color Striped Pairs
– 23AWG, Solid Bare Copper Conductors
– Center Spline to reduce Crosstalk
– Excellent Attenuation and Crosstalk Characteristics
– RoHS Compliant
Packaging:

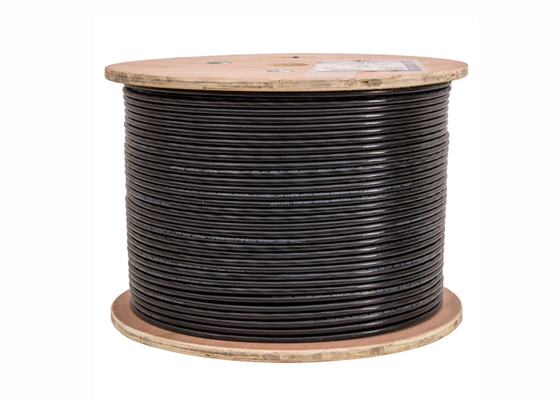

– 305m/ reel in Box – two box in carton
SHIPPING & DELIVERY
– For 20 ft container: 900 Box – For 40 HQ Container:2200 box
DELIVERY TIME
– 7/15 working days after payment |
Body Features | |
Performance Category | Cat 6 | |
Jacket Material | UV Resistant PE | |
Cable Configuration | U/UTP | |
Conductor Material | Solid bare copper | |
Insulation Material | High density Polyethylene (HDPE) | |

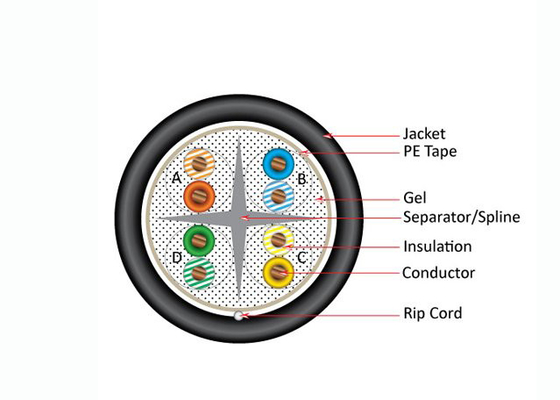

CABLE CONSTRUCTIONS | ||
Twisting | 2 cores to the pair | |
Number of pairs | 4 pairs | |
Conductor | soild bare copper | |
Insulation | High density Polyethylene (HDPE) | |
Drain wire | Tinned copper | |
Separator | cross filler | |
Rip cord | Optional | |
Sheath | UV Resistant PE | |
Dimensions | ||
Cable Length | 305 m / 1000 ft | |
Cable Weight | 14~15 kg | |
Diameter Over Jacket | 6.3 mm | |
Jacket Thickness | 0.55 mm | |
Conductor Diameter (AWG) | 23 | |
Conductor Diameter | 0.56 mm | |
Usage Conditions | ||
Operating Temperature | 0 to 60 ℃ | |
Installation Temperature | - 30 to 60 ℃ | |
Storage Temperature | - 40 to 80 ℃ | |
Bending Radius | 4 x Cable Diameter |
Electrical Specifications
DC Resistance , maximum at 20˚C | 9.38 ohms/100 m |
DC Resistance Unbalance, maximum | 5% |
Mutual Capacitance | 6.0 nF/100 m @ 1 kHz |
Characteristic Impedance | 100 ± 15 ohms (Frequency: 1-200 MHz) |
Delay Skew | ≤45 ns |
Nominal Velocity of Propagation (NVP) | 70% |
Operating Frequency, maximum | 250 MHz |
Operating Voltage, maximum | 80 V |
Nominal Transmission characteristics(at 20℃)
Frequency | Attenuation (Max) | PS NEXT (Min) | NEXT (Min) |
PS ELFEXT (Min) | ELFEXT (Min) | TCL (Min) |
EL TCL (Min) |
RL (Min) |
---|---|---|---|---|---|---|---|---|
MHz | dB | dB | dB | dB/100m | dB/100m | dB | dB | dB |
4 | 3.8 | 63.3 | 66.3 | 53 | 56 | 44 | 23 | 23 |
8 | 5.3 | 58.8 | 61.8 | 46.9 | 49.9 | 41 | 16.9 | 24.5 |
10 | 6 | 57.3 | 60.3 | 45 | 48 | 40 | 15 | 25 |
16 | 7.6 | 54.2 | 57.2 | 40.9 | 43.9 | 38 | 10.9 | 25 |
20 | 8.5 | 52.8 | 55.8 | 39 | 42 | 37 | 9 | 25 |
25 | 9.5 | 51.3 | 54.3 | 37 | 40 | 36 | 7 | 24.3 |
31.25 | 10.7 | 49.9 | 52.9 | 35.1 | 38.1 | 35.1 | / | 23.6 |
62.5 | 15.4 | 45.4 | 48.4 | 29.1 | 32.1 | 32 | / | 21.5 |
100 | 19.8 | 42.3 | 45.3 | 25 | 28 | 30 | / | 20.1 |
200 | 29 | 37.8 | 40.8 | 19 | 22 | 27 | / | 18 |
250 | 32.8 | 36.3 | 39.3 | 17 | 20 | 26 | / | 17.3 |
MANUFACTURING PROCESS OF LAN CABLE | |
1st. Copper rod 2nd. Wire drawing&Annealing 3rd. Core insulation 4th. Wire twisting 5th. Wire backing twisting 6th. Cabling 7th. Jacking 8th. Packing |
CUSTOMER SERVICES: |
|
We manufactures a comprehensive array of wires and cables to meet diverse market needs.
we supply a wide range of category 5e, category 6, category 6 A cable. If this all seems a litle too technical for you, then why not get in touch with us.
We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.
|
Shenzhen chengtiantai cable operates certified management systems compliant with: ISO 9001:2008 / ISO 14001:2004 / OHSAS 18001:2007
● Cable production started 1983 ● Sales in 2016 about 500 million USD ● 100,000 m2 Production area ● 8 workshop
Head office: chengtiantai Industrial Park, Lisonglang community, Gongming office, Guangming district, Shenzhen P.R. China 518106 |
* We do not advise the use of CCA (copper coated aluminum) cables to anyone who values their networks performance
