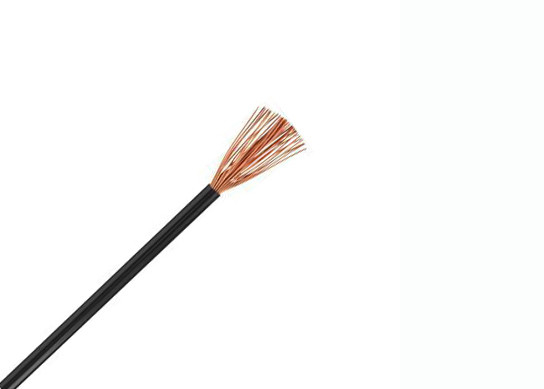

Single Core H07V-K 300 / 500V Electric Power Cable , Flexible Copper Conductor Cable

100 Unit
MOQ
On Request
Price
Single Core H07V-K 300 / 500V Electric Power Cable , Flexible Copper Conductor Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 300/500 V
Conductor: Copper Conductor
Conductor Type: Strand
Insulated: PVC Compound
Temperature Rating: - 5 ℃ ~ + 70 °C
Minimum Bending Radius: 4 × Outer Diameter
High Light:

Single Core Electric Power Cable

,

500V Electric Power Cable

,

300V Copper Conductor Cable

Basic Infomation
Place of Origin: China mainland
Brand Name: Shenzhen chengtiantai cable
Certification: CE, CB, RoHS , CCC
Model Number: H07V-K
Payment & Shipping Terms
Packaging Details: Coil in foil / drum
Delivery Time: 15 working days after payment
Product Description

Flexible Wire Cable Copper Conductor Wires & Cables Single Core Wire Flexible Cable H07V K 300/500V



H07V-K PVC Flexible Single Core fine wire stranded 1x1.5 mm²





shenzhen chengtiantian cable produces copper, aluminum and fiber optic wire and cable products for the energy, construction, industrial, specialty and communications segments.

we are committed to a partnership approach that supports customers in our four main business areas: power transmission and distribution, energy resources (oil & gas, mining and renewables), transportation (road, rail, air, sea) and building (commercial, residential and data centers).

The company’s energy cables include low-, medium- and high-voltage power distribution and power transmission products.


  Quick details of PVC Insulated Wires




Product category: H07V-K
Austrian type: Yf
Number of cores: 1
Nominal cross section: 1 x 1.5 mm²
Overall diameter approx: 2.8 mm
Net weight approx: 19 kg / km
Standard delivery length: 100 m
Conductor DC resistant at 20°C: 13.3 Ohms / km
Current carrying capacity: 25 A




  Description





Applications of flexible single core cable:

  • These insulated wires are suitable for lying in tubes, under and surface mounting of plasters and also in closed installation conduits.
  • These are not allowed to install for direct laying on cable trays, channels or tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against earth.

Installation:

  • In industries
  • In houses
  • Suitable for installation in electrical installation pipes or similar closed systems - surface or flush mount

Standards/references:

  • International: IEC 60227-2
  • National: GB/T5023-2008

Certificates, approvals:

  • CE
  • CCC (China Compulsory Certificate, CCC)
  • All substances of the cable meet the requirements of RoHS Directive

Color options:

red, yellow, blue, black, green, green/yellow (other colors can be supplied on request)





  Characteristics





  Construction characteristics

Conductor material bare copper class 5
Insulation polyvinyl chloride (PVC) with different colors

  Dimensional characteristics

Nominal cross-section 1.5 mm2
No. of strands 1
Max. overall diameter 2.8 mm
Approximate weight 19 kg / km

  Electrical characteristics

Rated Voltage Uo/U (Um) 450 / 750 V
Maximum current rating Air 25 ℃ 24 A
Maximum DC resistance, conductor 20°C 12.1 Ω / km
Test Voltage 2500 V

  Usage characteristics

Maximum operating temperature 70 °C
Short-circuit max. conductor temperature (duration up to 5 S) 160 °C
Temperature range - 5 °C to + 70 °C

  Installation conditions

Installation temperature 5 °C
Minimum bending radius 4 x cable diameter
Recommended maximum tensile stress 50 x A N / mm²
Note:
  • Photographs are not to scale and do not represent detailed images of the respective products.
  • Prices are net prices without VAT and surcharges. Sale to business customers only.
  • The information in this document is subject to change without notice.
