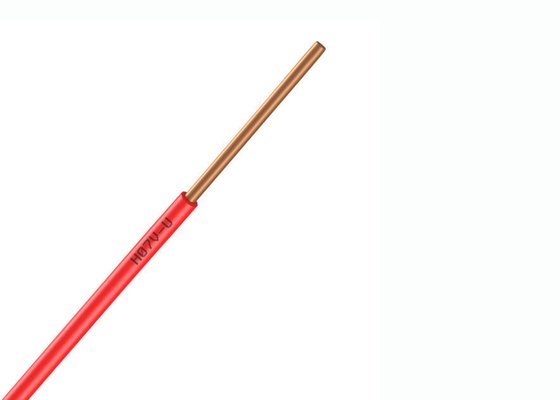

Solid Copper PVC Single Core Cable Copper For Home Wiring

100 Unit
MOQ
On Request
Price
Solid Copper PVC Single Core Cable Copper For Home Wiring
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 450/750 V
Conductor: Copper Conductor
Conductor Type: Solid
Insulated: PVC Compound
Temperature Rating: - 5 ℃ ~ + 70 °C
Minimum Bending Radius: 4 × Outer Diameter
Core No.: Single Core
Color: Green/Yellow
Highlight:

Pvc Copper Wire Single Core Flexible

,

Home Wiring PVC Single Core Cable
Basic Infomation
Place of Origin: China mainland
Brand Name: Shenzhen chengtiantai cable
Certification: CE, CB, Rhos, CCC
Model Number: H07V-U
Payment & Shipping Terms
Packaging Details: Coil in foil / drum
Delivery Time: 15 working days after payment
Product Description

 Solid Copper Wire Cable PVC Single Core Cable Copper Wire For Home Wiring

PVC insulated non-sheathed single copper core wires H07V-U 1x2.5 mm²

shenzhen chengtiantian cable produces copper, aluminum and fiber optic wire and cable products for the energy, construction, industrial, specialty and communications segments.

we are committed to a partnership approach that supports customers in our four main business areas: power transmission and distribution, energy resources (oil & gas, mining and renewables), transportation (road, rail, air, sea) and building (commercial, residential and data centers).

The company’s energy cables include low-, medium- and high-voltage power distribution and power transmission products.


  Quick details of solid single core wire cables



Product category: H07V-U
Austrian type: Ye
Number of cores: 1
Nominal cross section: 1 x 2.5 mm²
Overall diameter approx: 3.9 mm
Net weight approx: 31.4 kg / km
Standard delivery length: 100 m
Conductor DC resistant at 20°C: 7.41 Ohms / km
Current carrying capacity: 34 A




  Description of single copper core cable



Applications:
Installation in surface mounted or embedded conduits or similar closed systems and for fixed protected installation in or on lighting fittings and inside appliances, switchgear and control gear (from offices, domestic or commercial buildings) with voltage up to 1000V AC or 750V DC.
Installation:

  • In industries
  • In houses
  • Suitable for installation in electrical installation pipes or similar closed systems - surface or flush mount

Standards/references:

  • International: IEC 60227-1
  • National: GB/T5023-2008

Certificates, approvals:

  • CE
  • CCC (China Compulsory Certificate, CCC)
  • All substances of the cable meet the requirements of RoHS Directive

Color options:
red, yellow, blue, black, green, green/yellow (other colors can be supplied on request)



  Characteristics



  Construction characteristics
Conductor material bare copper class 1
Insulation polyvinyl chloride (PVC) with different colors

  Dimensional characteristics
Nominal cross-section 2.5 mm2
No. of strands 1
Average insulation thickness 0.8 mm
Max. overall diameter 3.9 mm
Approximate weight 31.4 kg / km

  Electrical characteristics
Rated Voltage Uo/U (Um) 450 / 750 V
Maximum current rating Air 25 ℃ 34 A
Maximum DC resistance, conductor 20°C 7.41 Ω / km
Test Voltage 2500 V

  Usage characteristics
Maximum operating temperature 70 °C
Short-circuit max. conductor temperature(duration up to 5 S) 160 °C
Temperature Range - 5 °C to + 70 °C

  Installation conditions
Installation temperature 5 °C
Minimum bending radius 4 x cable diameter
Recommended maximum tensile stress 50 x A N / mm²
Note:
  • Photographs are not to scale and do not represent detailed images of the respective products.
  • Prices are net prices without VAT and surcharges. Sale to business customers only.
  • The information in this document is subject to change without notice.
