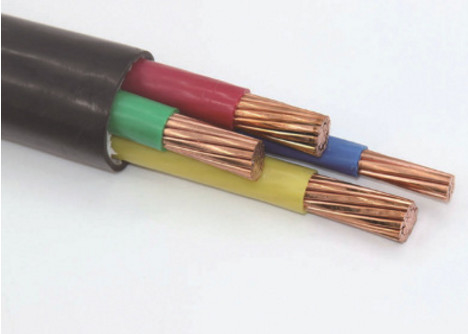

VV22 Type PVC Insulated Power Cable 3*25 Sq Mm Cable For Residental Connections

500 m
MOQ
On Request
Price
VV22 Type PVC Insulated Power Cable 3*25 Sq Mm Cable For Residental Connections
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 0.6 / 1 KV
Conductor: BareCopper
No. Of Cores: 3 Cores
Insulation: PVC
Armoured Type: Unarmoured
Sheath: PVC Compound
Highlight:

pvc electrical cable

,

pvc copper cable

Basic Infomation
Place of Origin: Shenzhen, Mainland China
Brand Name: Chengtiantai Cable
Certification: CE, CB
Model Number: VV22
Payment & Shipping Terms
Packaging Details: Steel Wooden Drum
Delivery Time: 15 working days after payments
Payment Terms: L/C, T/T
Supply Ability: 20 km / day
Product Description

3*25 sq mm PVC Cable STA Armoured Power Cable to IEC 60502-1 Cu-conductor/ PVC insulated / SAT / PVC



0.6/1kV, PVC Insulated Cables according to IEC 60502-1 (armoured)





Power cables for energy supply are installed in open air, in underground, indoors, in cable ducts, power stations, residental connections and street lighting as well as in subscriber networks, where mechanical damages are not be expected.





Quick details

-------------------------------------------------------

Nominal cross section:3*25 mm2

Overall diameter Ø approx:26.9mm

Net weight approx: 1344 kg/km

Conductor DC resistant at 20°C:0.73Ω/km

Electrical characteristics

-------------------------------------------------------

Rated voltage Uo/U (Um): 600 / 1000 V

Maximum current rating air 30°C:90A

Maximum current rating buried 20°C:105A

Maximum DC resistance, conductor 20°C:0.73Ω / km

Test voltage: 4000 V

Dimensional characteristics

-------------------------------------------------------

Nominal cross-section: 25mm2

No of Conductors: single 3 Core

Insulation thickness: 1.2mm

sheath thickness nominal value:1.8 mm

Max overall diameter Ø: 26.9 mm

Approximate weight:1344kg/km



Usage characteristics

-------------------------------------------------------

Maximum operating temperature: 90 °C

Short circuit temperature: +250°C (short circuit duration max. 5 s)

during installation up to -20°C

Temperature range: - 20 to + 90 °C

Minimum bending radius:15 x cable Ø



Standards

-------------------------------------------------------

International: IEC 60502-1
National:GB/ T 12706.1-2008

Construction characteristics

-------------------------------------------------------
1. Conductor
– Bare copper conductor, Class 2 to IEC 60228

–​ For smaller sizes, a solid round conductor, Class 1
2. Insulation: XLPE Compound

3. Filler: PP filler
4. Outer Sheath :PVC Compound
5. Sheath colour :Black

Note:

when required for a particular application, other colors are available.

RECOMMENDED ORDERING PARAMETERS

-------------------------------------------------------

For prompt quotation / supplies please make sure your inquiries and your orders are
securing the following data :

1 - International or Special Standard. (Alternatively, the precise usage of the cable.)
2 - Rated voltage.
3 - Copper or Aluminium conductors.
4 - Size of each conductor.
5 - Insulation material : XLPE or others.
6 - Number and identification of conductors.
7 - Other requirements.
8 - Packing.
9 - Required delivery time.
10 - Required validity.
