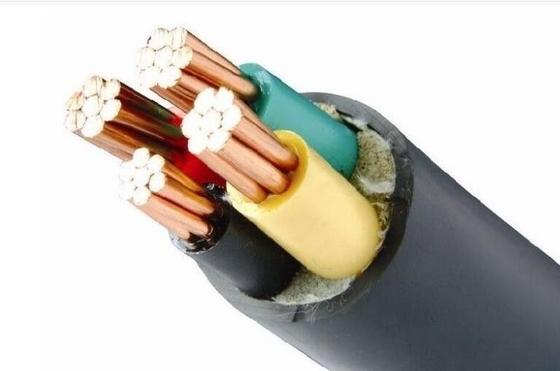

3*25 sq.mm PVC Multi-core cable to IEC 60502-1 Cu-conductor, PVC Insulated and sheathed
0.6/1kV, PVC Insulated Cables according to IEC 60502-1 (unarmoured)
Power cables for energy supply are installed in open air, in underground, indoors, in cable ducts, power stations, residental connections and street lighting as well as in subscriber networks, where mechanical damages are not be expected.
Quick details ------------------------------------------------------- – Nominal cross section:3X25mm2 – Overall diameter Ø approx:21.0mm – Net weight approx: 954 kg/km – Conductor DC resistant at 20°C:0.73Ω/km Electrical characteristics ------------------------------------------------------- –Rated voltage Uo/U (Um): 600 / 1000 V –Maximum current rating air 30°C:115 A –Maximum current rating buried 20°C: 138A –Maximum DC resistance, conductor 20°C:0.73Ω / km –Test voltage: 4000 V Dimensional characteristics ------------------------------------------------------- – Nominal cross-section: 25 mm2 – No of Conductors: single 3 Core – Insulation thickness: 0.9mm – sheath thickness nominal value:1.8 mm – Max overall diameter Ø: 21.0 mm – Approximate weight:954 kg/km
Usage characteristics ------------------------------------------------------- – Maximum operating temperature: 90 °C – Short circuit temperature: +250°C (short circuit duration max. 5 s) – during installation up to -20°C – Temperature range: - 20 to + 90 °C – Minimum bending radius:15 x cable Ø
Standards ------------------------------------------------------- International: IEC 60502-1 Construction characteristics ------------------------------------------------------- – For smaller sizes, a solid round conductor, Class 1 3. Filler: PP filler Note: when required for a particular application, other colors are available. RECOMMENDED ORDERING PARAMETERS ------------------------------------------------------- For prompt quotation / supplies please make sure your inquiries and your orders are 1 - International or Special Standard. (Alternatively, the precise usage of the cable.) |
