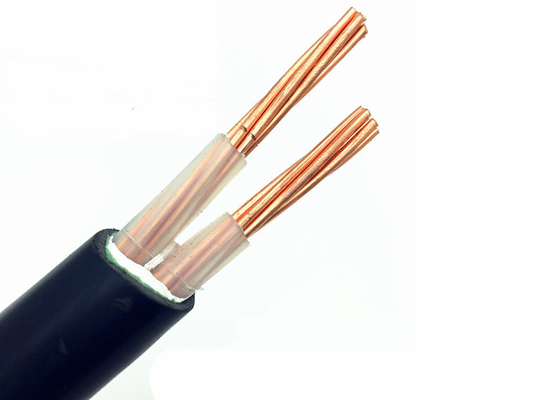

Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations

500 m
MOQ
On Request
Price
Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 0.6 / 1 KV
Conductor: Bear Copper
No. Of Cores: 2 Cores
Insulation: XLPE
Armoured Type: Unarmoured
Sheath: PVC Compound
High Light:

xlpe copper cable

,

xlpe pvc cable

Basic Infomation
Place of Origin: Shenzhen City, Mainland China
Brand Name: Chengtiantai cable
Certification: CE, CB
Model Number: YJV
Payment & Shipping Terms
Packaging Details: Steel wooden Drum
Delivery Time: 15 working days after payments
Payment Terms: L/C, T/T
Supply Ability: 20 km / day
Product Description


0.6/1kV, PVC Insulated Cables according to IEC 60502-1 (unarmoured)





Power cables for energy supply are installed in open air, in underground, indoors, in cable ducts, power stations, residental connections and street lighting as well as in subscriber networks, where mechanical damages are not be expected.





Quick details

-------------------------------------------------------

Nominal cross section:2X16 mm2

Overall diameter Ø approx:16.6mm

Net weight approx: 514 kg/km

Conductor DC resistant at 20°C:1.15 Ω/km

Electrical characteristics

-------------------------------------------------------

Rated voltage Uo/U (Um): 600 / 1000 V

Maximum current rating air 30°C:113 A

Maximum current rating buried 20°C: 149 A

Maximum DC resistance, conductor 20°C: 1.15Ω / km

Test voltage: 4000 V

Dimensional characteristics

-------------------------------------------------------

Nominal cross-section: 16  mm2

No of Conductors: single 2 Core

Insulation thickness: 0.7mm

sheath thickness nominal value:1.8 mm

Max overall diameter Ø: 16.6 mm

Approximate weight:514kg/km



Usage characteristics

-------------------------------------------------------

Maximum operating temperature: 90 °C

Short circuit temperature: +250°C (short circuit duration max. 5 s)

during installation up to -5°C

Temperature range: - 20 to + 90 °C

Minimum bending radius:15 x cable Ø



Standards

-------------------------------------------------------

International: IEC 60502-1
National:GB/ T 12706.1-2008

Construction characteristics

-------------------------------------------------------
1. Conductor
– Bare copper conductor, Class 2 to IEC 60228

–​ For smaller sizes, a solid round conductor, Class 1
2. Insulation: XLPE Compound

3. Filler: PP filler
4. Outer Sheath :PVC Compound
5. Sheath colour :Black

Note:

when required for a particular application, other colors are available.

RECOMMENDED ORDERING PARAMETERS

-------------------------------------------------------

For prompt quotation / supplies please make sure your inquiries and your orders are
securing the following data :

1 - International or Special Standard. (Alternatively, the precise usage of the cable.)
2 - Rated voltage.
3 - Copper or Aluminium conductors.
4 - Size of each conductor.
5 - Insulation material : XLPE or others.
6 - Number and identification of conductors.
7 - Other requirements.
8 - Packing.
9 - Required delivery time.
10 - Required validity.

Shenzhen chengtiantai cable



Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 0

Cable production started 1983 with 35 years of cable manufacturing experience.Sales in 2016 about 500 million USD

Our production in numbers

Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 1

200 Sets Of Testing Equipment, 100 Testing Items, 8 workshop

40 wire drawing machines,10 bunching machines, 28 Extruder system, 42 stranding machines,10 Braiding machines

Manufacturing Plant

Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 2
100,000 m2 Production area

2 Manufacturing plant
1 R&D Center

350 Will-trained employees

Our products at a glance



–​ Medium voltage power cable

–​ 0.6/1 kV Low volate power cable

–​ Copper building wire up to 750 Volts

–​ Ethernet Lan cable cat.5e, cat6, cat.6A cat.7

–​ Control cable

–​ Fibre optical cable

–​ Coxial cable

CONTACT US



Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 3



Tel:+86 755 6114 5028
Fax:+86 755 61137976
E-mail : cttcable@hotmail.com

Head office:

Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 4Chengtiantai Industrial Park, Lisonglang community, Gongming office, Guangming district, Shenzhen P.R. China 518106





  Physical and Electrical Characteristics:









INSTALLATION METHOD DETAILS



Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 5   Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 6   Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 7   Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 8
A1 – Thermally insolated wall (Single-core) A2 – Thermally insolated wall (multi-core) B1 – Apparent electroduct (Single-core) B2 – Apparent electroduct (multi-core)

Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 9   Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 10   Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 11   Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 12
B1 – Electroduct in brickwork (Single-core)   B1 – Electroduct in brickwork (multi-core)   C – On the wall    C – On the ceiling

Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 13   Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 14   Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 15   Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 16
C – Non-perforated tray   F – Perforated tray (Single-core)   F – Perforated tray (multi-core)   F –Suspended (Single-core)

Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 17   Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 18   Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 19   Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 20
E – Suspended (multi-core)   B2 – Construction space   B2 – Construction space   B1 – Electroduct (Single-core)

Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 21   Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 22   Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 23   Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 24
B2 – Electroduct (Multi-core)   B2 – Closed raceway embedded in floor (multi-core)   B2 – Closed raceway embedded in floor (multi-core)   B1 – Ventilated raceway embedded in floor

Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 25   Lead Free 2 Core Xlpe Cable , 2*16 Sq Mm Copper Cable For Power Stations 26
C – Embedded in the brickwork   D – Buried in additional mechanical protection



Cable Drum Data



CABLE DRUMS D1=Flange Diameter(mm) W=Useful Width (mm) D2=Barrel Diameter(mm)
Low Voltage Power Cable 0.6/1 kV 3+2 Core XLPE Insulated, PVC Sheathed, Unarmoured & Armoured to IEC 60502 1000 700 500
1100 700 550
1200 700 600
1400 750 710
1600 900 900
1800 1120 1000
2400 1150 1300



  WARRANTY

-----------------------------------------------------------------------------------------------------------

For a period commencing on the date shipped the Goods to Buyer and continuing for a period of 12 months thereafter.



Note:

-----------------------------------------------------------------------------------------------------------

  • Photographs are not to scale and do not represent detailed images of the respective products
  • Sale to business customers only
  • Information in this document is subject to change without notice
