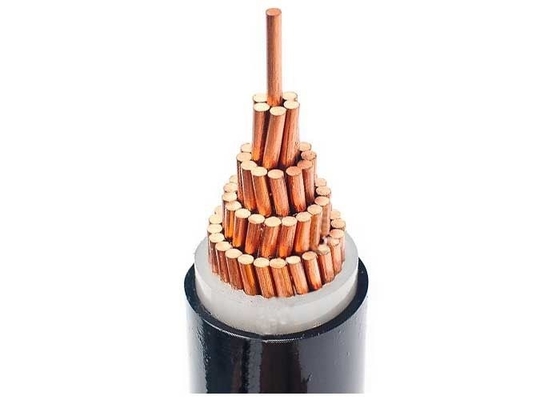

1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable

500 m
MOQ
On Request
Price
1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 0.6 / 1 KV
Conductor: Bear Copper
No. Of Cores: 1 Cores
Insulation: XLPE
Armoured Type: Unarmoured
Sheath: PVC Compound
High Light:

electrical power cable

,

xlpe pvc cable

Basic Infomation
Place of Origin: Shenzhen City, Mainland China
Brand Name: Chengtiantai cable
Certification: CE, CB
Model Number: YJV
Payment & Shipping Terms
Packaging Details: Steel wooden Drum
Delivery Time: 15 working days after payments
Payment Terms: L/C, T/T
Supply Ability: 20 km / day
Product Description


0.6/1kV, PVC Insulated Cables according to IEC 60502-1 (unarmoured)





Power cables for energy supply are installed in open air, in underground, indoors, in cable ducts, power stations, residental connections and street lighting as well as in subscriber networks, where mechanical damages are not be expected.





Quick details

-------------------------------------------------------

Nominal cross section:1X185 mm2

Overall diameter Ø approx:22.9mm

Net weight approx: 1910 kg/km

Conductor DC resistant at 20°C:0.1 Ω/km

Electrical characteristics

-------------------------------------------------------

Rated voltage Uo/U (Um): 600 / 1000 V

Maximum current rating air 30°C:580 A

Maximum current rating buried 20°C: 671 A

Maximum DC resistance, conductor 20°C: 0.1Ω / km

Test voltage: 4000 V

Dimensional characteristics

-------------------------------------------------------

Nominal cross-section: 185  mm2

No of Conductors: single Core

Insulation thickness: 1.6mm

sheath thickness nominal value:1.6 mm

Max overall diameter Ø: 22.9 mm

Approximate weight:1910kg/km



Usage characteristics

-------------------------------------------------------

Maximum operating temperature: 90 °C

Short circuit temperature: +250°C (short circuit duration max. 5 s)

during installation up to -5°C

Temperature range: - 20 to + 90 °C

Minimum bending radius:15 x cable Ø



Standards

-------------------------------------------------------

International: IEC 60502-1
National:GB/ T 12706.1-2008

Construction characteristics

-------------------------------------------------------
1. Conductor
– Bare copper conductor, Class 2 to IEC 60228

–​ For smaller sizes, a solid round conductor, Class 1
2. Insulation: XLPE Compound

3. Filler: PP filler
4. Outer Sheath :PVC Compound
5. Sheath colour :Black

Note:

when required for a particular application, other colors are available.

RECOMMENDED ORDERING PARAMETERS

-------------------------------------------------------

For prompt quotation / supplies please make sure your inquiries and your orders are
securing the following data :

1 - International or Special Standard. (Alternatively, the precise usage of the cable.)
2 - Rated voltage.
3 - Copper or Aluminium conductors.
4 - Size of each conductor.
5 - Insulation material : XLPE or others.
6 - Number and identification of conductors.
7 - Other requirements.
8 - Packing.
9 - Required delivery time.
10 - Required validity.

Shenzhen chengtiantai cable



1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 0

Cable production started 1983 with 35 years of cable manufacturing experience.Sales in 2016 about 500 million USD

Our production in numbers

1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 1

200 Sets Of Testing Equipment, 100 Testing Items, 8 workshop

40 wire drawing machines,10 bunching machines, 28 Extruder system, 42 stranding machines,10 Braiding machines

Manufacturing Plant

1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 2
100,000 m2 Production area

2 Manufacturing plant
1 R&D Center

350 Will-trained employees

Our products at a glance



–​ Medium voltage power cable

–​ 0.6/1 kV Low volate power cable

–​ Copper building wire up to 750 Volts

–​ Ethernet Lan cable cat.5e, cat6, cat.6A cat.7

–​ Control cable

–​ Fibre optical cable

–​ Coxial cable

CONTACT US



1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 3



Tel:+86 755 6114 5028
Fax:+86 755 61137976
E-mail : cttcable@hotmail.com

Head office:

1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 4Chengtiantai Industrial Park, Lisonglang community, Gongming office, Guangming district, Shenzhen P.R. China 518106





  Physical and Electrical Characteristics:









INSTALLATION METHOD DETAILS



1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 5   1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 6   1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 7   1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 8
A1 – Thermally insolated wall (Single-core) A2 – Thermally insolated wall (multi-core) B1 – Apparent electroduct (Single-core) B2 – Apparent electroduct (multi-core)

1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 9   1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 10   1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 11   1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 12
B1 – Electroduct in brickwork (Single-core)   B1 – Electroduct in brickwork (multi-core)   C – On the wall    C – On the ceiling

1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 13   1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 14   1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 15   1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 16
C – Non-perforated tray   F – Perforated tray (Single-core)   F – Perforated tray (multi-core)   F –Suspended (Single-core)

1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 17   1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 18   1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 19   1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 20
E – Suspended (multi-core)   B2 – Construction space   B2 – Construction space   B1 – Electroduct (Single-core)

1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 21   1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 22   1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 23   1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 24
B2 – Electroduct (Multi-core)   B2 – Closed raceway embedded in floor (multi-core)   B2 – Closed raceway embedded in floor (multi-core)   B1 – Ventilated raceway embedded in floor

1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 25   1*185 sq. mm 0.6/1 kV XLPE Cable ( Unarmoured ) Cu-conductor /XLPE Insulated / PVC Sheathed Electric Cable 26
C – Embedded in the brickwork   D – Buried in additional mechanical protection



Cable Drum Data



CABLE DRUMS D1=Flange Diameter(mm) W=Useful Width (mm) D2=Barrel Diameter(mm)
Low Voltage Power Cable 0.6/1 kV 3+2 Core XLPE Insulated, PVC Sheathed, Unarmoured & Armoured to IEC 60502 1000 700 500
1100 700 550
1200 700 600
1400 750 710
1600 900 900
1800 1120 1000
2400 1150 1300



  WARRANTY

-----------------------------------------------------------------------------------------------------------

For a period commencing on the date shipped the Goods to Buyer and continuing for a period of 12 months thereafter.



Note:

-----------------------------------------------------------------------------------------------------------

  • Photographs are not to scale and do not represent detailed images of the respective products
  • Sale to business customers only
  • Information in this document is subject to change without notice
