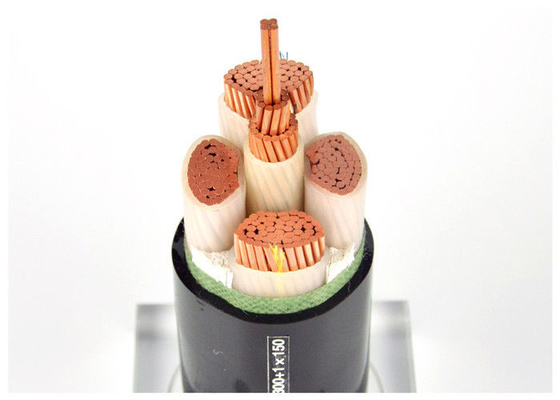

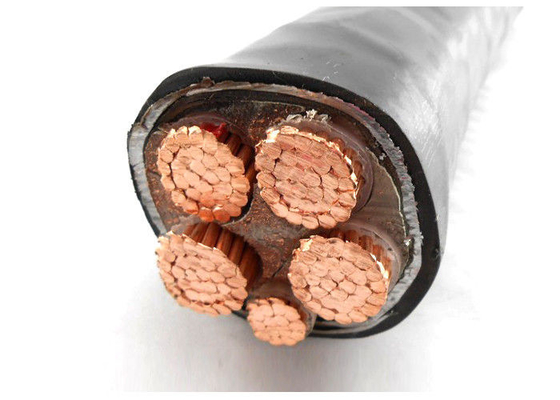

600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants

500 m
MOQ
On Request
Price
600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 0.6 / 1kV
Conductor: Bare Copper
No. Of Cores: 4 Core+Earth
Insulation: XLPE Compound
Armoured Type: Unarmoured
Sheath: PVC Compound
Highlight:

xlpe copper cable

,

xlpe pvc cable

Basic Infomation
Place of Origin: Shenzhen City, Mainland China
Brand Name: Chengtiantai cable
Certification: CE, CB
Model Number: YJV
Payment & Shipping Terms
Packaging Details: Steel wooden Drum
Delivery Time: 15 working days after payments
Payment Terms: L/C, T/T
Product Description

IEC 60502-1 Cables

600/1000V, XLPE Insulated Cables according to IEC 60502-1



Applications



These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.



Construction

1. Conductors

-------------------------------------------------------------------------------

The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium alloy, or of Class 5 of plain or metal-coated copper in accordance with IEC 60228.
2. Insulation

-------------------------------------------------------------------------------

XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.
3. Assembly / Inner Covering

-------------------------------------------------------------------------------

The inner coverings may be extruded or lapped. For cables with circular cores, except cables with more than five cores, a lapped inner covering shall be permitted only if the interstices between the cores are substantially filled. A suitable binder is permitted before application of an extruded inner covering. The material is compatible with the insulating material,The materials used for inner coverings and fillers shall be suitable for the operating temperature of the cable and compatible with the insulating material.For halogen free cables, the inner covering and fillers shall also be halogen free compound.
4. Armour

-------------------------------------------------------------------------------

Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1, or double aluminum/steel tapes and copper/tinned copper wire can also be manufactured upon request.
5. Outer Sheath

-------------------------------------------------------------------------------

Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available on request.
6. Fire Performance of Cable Sheaths

-------------------------------------------------------------------------------

Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.





  Physical and Electrical Characteristics:





No.cores x

cross-sec.

Insulation

thickness

Nominal

Sheath

thickness

Outer Ø

approx.

weight

approx.

Current ratings in air 30℃ Current ratings buried 20℃
Phase Neutral
mm² mm mm mm mm kg / km A A
4×4+1×2.5 0.7 0.7 1.8 14.2 320 38 48
4×6+1×4.0 0.7 0.7 1.8 15.6 427 48 60
4×10+1×6.0 0.7 0.7 1.8 18.1 636 66 81
4×16+1×10 0.7 0.7 1.8 20.8 941 88 107
4×25+1×16 0.9 0.7 1.8 24.9 1441 118 137
4×35+1×16 0.9 0.7 1.8 27.1 1853 144 165
4×50+1×25 1.0 0.9 1.9 31.6 2616 177 196
4×70+1×35 1.1 0.9 2.1 36.5 3578 227 244
4×95+1×50 1.1 1.0 2.2 41.6 4843 277 288
4×120+1×70 1.2 1.1 2.4 46.3 6110 325 329
4×150+1×70 1.4 1.1 2.5 51.2 7421 375 369
4×185+1×95 1.6 1.1 2.7 56.8 9191 433 418
4×240+1×120 1.7 1.2 2.9 63.2 11763 518 488
4×300+1×150 1.8 1.4 3.1 70.0 14595 625 555

*Dimensions and specifications may be changed without prior notice.





INSTALLATION METHOD DETAILS



600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 0   600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 1   600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 2   600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 3
A1 – Thermally insolated wall (Single-core) A2 – Thermally insolated wall (multi-core) B1 – Apparent electroduct (Single-core) B2 – Apparent electroduct (multi-core)

600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 4   600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 5   600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 6   600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 7
B1 – Electroduct in brickwork (Single-core)   B1 – Electroduct in brickwork (multi-core)   C – On the wall    C – On the ceiling

600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 8   600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 9   600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 10   600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 11
C – Non-perforated tray   F – Perforated tray (Single-core)   F – Perforated tray (multi-core)   F –Suspended (Single-core)

600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 12   600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 13   600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 14   600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 15
E – Suspended (multi-core)   B2 – Construction space   B2 – Construction space   B1 – Electroduct (Single-core)

600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 16   600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 17   600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 18   600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 19
B2 – Electroduct (Multi-core)   B2 – Closed raceway embedded in floor (multi-core)   B2 – Closed raceway embedded in floor (multi-core)   B1 – Ventilated raceway embedded in floor

600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 20   600/1000V 4 Core with Earth Core Cable , YJV Type XLPE Power Cable For Industrial Plants 21
C – Embedded in the brickwork   D – Buried in additional mechanical protection





  Cable Drum Data



CABLE DRUMS D1=Flange Diameter(mm) W=Useful Width (mm) D2=Barrel Diameter(mm)
Low Voltage Power Cable 0.6/1 kV 3+2 Core XLPE Insulated, PVC Sheathed, Unarmoured & Armoured to IEC 60502 1000 700 500
1100 700 550
1200 700 600
1400 750 710
1600 900 900
1800 1120 1000
2400 1150 1300





  RECOMMENDED ORDERING PARAMETERS

   CONTACT

For prompt quotation / supplies please make sure your inquiries and your orders are
securing the following data :

1 - International or Special Standard. (Alternatively, the precise usage of the cable.)
2 - Rated voltage.
3 - Copper or Aluminium conductors.
4 - Size of each conductor.
5 - Insulation material : XLPE or others.
6 - Number and identification of conductors.
7 - Other requirements.
8 - Packing.
9 - Required delivery time.
10 - Required validity.

If this all seems a litle too technical for you, then why not get in touch with us.



We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.



Tel:+86 755 6114 5028
Fax:+86 755 61137976
E-mail : cttcable@hotmail.com
Head office:chengtiantai Industrial Park, Lisonglang community, Gongming office, Guangming district, Shenzhen P.R. China 518106



  WARRANTY



For a period commencing on the date shipped the Goods to Buyer and continuing for a period of 12 months thereafter.
