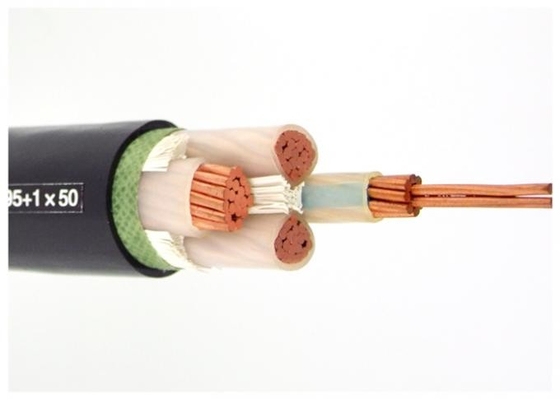

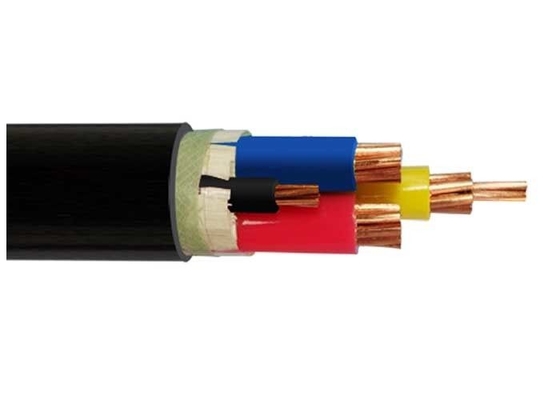

Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured

500 m
MOQ
On Request
Price
Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 0.6 / 1kV
Conductor: Bare Copper
No. Of Cores: 3 Core+ Earth
Insulation: XLPE Compound
Armoured Type: Unarmoured
Sheath: PVC Compound
Highlight:

electrical power cable

,

xlpe pvc cable

,

Fire Proof XLPE Insulated Power Cable

Basic Infomation
Place of Origin: Shenzhen City, Mainland China
Brand Name: Chengtiantai cable
Certification: CE, CB
Model Number: YJV
Payment & Shipping Terms
Packaging Details: Steel wooden Drum
Delivery Time: 15 working days after payments
Payment Terms: L/C, T/T
Product Description

IEC 60502-1 Cables 3 core with Earth (Unarmoured) | Cu - Conductor / XLPE Insulated / PVC Sheathed power cable

  IEC 60502-1 Cables



Applications



These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.



Construction

1. Conductors

------------------------------------------------------------------------------------------------------

The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium alloy, or of Class 5 of plain or metal-coated copper in accordance with IEC 60228.
2. Insulation

------------------------------------------------------------------------------------------------------

XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.
3. Assembly / Inner Covering

------------------------------------------------------------------------------------------------------

The inner coverings may be extruded or lapped. For cables with circular cores, except cables with more than five cores, a lapped inner covering shall be permitted only if the interstices between the cores are substantially filled. A suitable binder is permitted before application of an extruded inner covering. The material is compatible with the insulating material,The materials used for inner coverings and fillers shall be suitable for the operating temperature of the cable and compatible with the insulating material.For halogen free cables, the inner covering and fillers shall also be halogen free compound.
4. Armour

------------------------------------------------------------------------------------------------------

Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1, or double aluminum/steel tapes and copper/tinned copper wire can also be manufactured upon request.
5. Outer Sheath

------------------------------------------------------------------------------------------------------

Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available on request.
6. Fire Performance of Cable Sheaths

------------------------------------------------------------------------------------------------------

Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.





  Physical and Electrical Characteristics:





No.cores x

cross-sec.

Insulation

thickness

Nominal

Sheath

thickness

Outer Ø

approx.

weight

approx.

Current ratings in air 30℃ Current ratings buried 20℃
Phase Neutral
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4.0 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6.0 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139 164
3×50+1×25 1.0 0.9 1.8 27.7 1951 173 198
3×70+1×35 1.1 0.9 1.9 31.9 2662 222 246
3×95+1×50 1.1 1.0 2.1 36.2 3578 271 293
3×120+1×70 1.2 1.1 2.2 39.9 4567 318 334
3×150+1×70 1.4 1.1 2.3 45.0 5514 370 375
3×185+1×95 1.6 1.1 2.5 49.4 6850 427 422
3×240+1×120 1.7 1.2 2.7 54.9 8741 507 492
3×300+1×150 1.8 1.4 2.9 62.9 11052 599 560






INSTALLATION METHOD DETAILS



Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 0   Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 1   Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 2   Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 3
A1 – Thermally insolated wall (Single-core) A2 – Thermally insolated wall (multi-core) B1 – Apparent electroduct (Single-core) B2 – Apparent electroduct (multi-core)

Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 4   Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 5   Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 6   Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 7
B1 – Electroduct in brickwork (Single-core)   B1 – Electroduct in brickwork (multi-core)   C – On the wall    C – On the ceiling

Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 8   Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 9   Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 10   Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 11
C – Non-perforated tray   F – Perforated tray (Single-core)   F – Perforated tray (multi-core)   F –Suspended (Single-core)

Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 12   Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 13   Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 14   Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 15
E – Suspended (multi-core)   B2 – Construction space   B2 – Construction space   B1 – Electroduct (Single-core)

Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 16   Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 17   Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 18   Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 19
B2 – Electroduct (Multi-core)   B2 – Closed raceway embedded in floor (multi-core)   B2 – Closed raceway embedded in floor (multi-core)   B1 – Ventilated raceway embedded in floor

Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 20   Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable Unarmoured 21
C – Embedded in the brickwork   D – Buried in additional mechanical protection





  Cable Drum Data



CABLE DRUMS D1=Flange Diameter(mm) W=Useful Width (mm) D2=Barrel Diameter(mm)
Low Voltage Power Cable 0.6/1 kV 3+2 Core XLPE Insulated, PVC Sheathed, Unarmoured & Armoured to IEC 60502 1000 700 500
1100 700 550
1200 700 600
1400 750 710
1600 900 900
1800 1120 1000
2400 1150 1300





  RECOMMENDED ORDERING PARAMETERS

   CONTACT

For prompt quotation / supplies please make sure your inquiries and your orders are
securing the following data :

1 - International or Special Standard. (Alternatively, the precise usage of the cable.)
2 - Rated voltage.
3 - Copper or Aluminium conductors.
4 - Size of each conductor.
5 - Insulation material : XLPE or others.
6 - Number and identification of conductors.
7 - Other requirements.
8 - Packing.
9 - Required delivery time.
10 - Required validity.

If this all seems a litle too technical for you, then why not get in touch with us.



We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.



Tel:+86 755 6114 5028
Fax:+86 755 61137976
E-mail : cttcable@hotmail.com
Head office:chengtiantai Industrial Park, Lisonglang community, Gongming office, Guangming district, Shenzhen P.R. China 518106



  WARRANTY



For a period commencing on the date shipped the Goods to Buyer and continuing for a period of 12 months thereafter.
